JVTC Fixture to Fixture
or Single Powered
Vapor Tight


Product Description

The JVTC Series of Vapor Tight fixtures are a highly durable and robust series of Tri-Proof lights designed for production areas, parking facilities and any other area of application where harsh conditions have to be countered. Its polycarbonate housing is cast from a single mold and therefore absolutely dust and waterproof.

Its Ingress Protection rating of IP69K assures that it can truly be used indoor and outdoor under all conditions. Improved end-caps featuring a rotary knob system allow for tool-free wiring and assure a very fast and almost effortless installation of the Continuous Run series.

A massive internal aluminum core provides stability and assures good thermal conditions for up to 480pcs of 0.5W SMD2835 chips as well as the internal isolated power driver. This modern and efficient Tri-Proof light is available in 40W and 60W wattage.


JVTC Vapor Tight Continuous Run

Standard Features

Construction and Materials

  • Polycarbonate Housing is cast in a single mold (cover cannot be removed)
  • Internal Aluminum Housing and Stainless Steel Mounting Clips
  • Rotary knob for tool-free wiring and fast installation
  • Single installation or as continuous line
  • 5FT Power Cord
  • IP68 Cable Gland
  • Standard surface mounting bracket

Optical System

  • 120° Light Distribution

Electrical System

  • Input Power: 40W / 60W
  • Input Voltage: 100-277VAC 50/60Hz
  • Efficacy: 130 lm/W on average
  • Power Factor: >0.90
  • CRI: >80
  • Operating Temp:-22°F to 113°F (-30°C to 45°C)
  • Total Harmonic Distortion: <15%
  • Integral Surge Protection: L/N-PE: 4kV, L-N: 4kV

Dimming and Controls

  • Non-Dimming Standard / 0-10V Dimming Optional

Certifications and Compliance

  • UL Listed
  • Ingress Protection: IP65 & IP69K Suitable for Wet Locations
  • RoHS compliant
  • Meets FCC Part 15, Subpart B, Class A limits for conducted and radiated Emissions

Lifetime Based on TM21: L70 @ 163,000Hrs / L80 @ 141,000Hrs / L90 @ 127,000Hrs

Options Available

  • 0-10V Dimming
  • 10FT or 16FT Power Cord Options
  • EM15 & EM20 Emergency Battery Pack Options (only for dimming models)

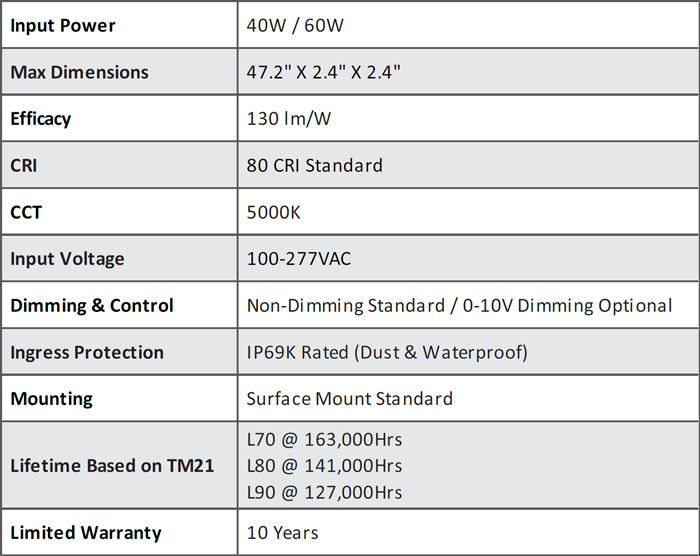

Performance Summary

Built-In JACS Bluetooth Mesh Networked Lighting Control

  • Apps available in iOS and Android Stores
  • Easy to configure lighting fixtures
  • Scheduling
  • Trouble shooting
  • Zone configurations
  • Scene management
  • High end trimming
