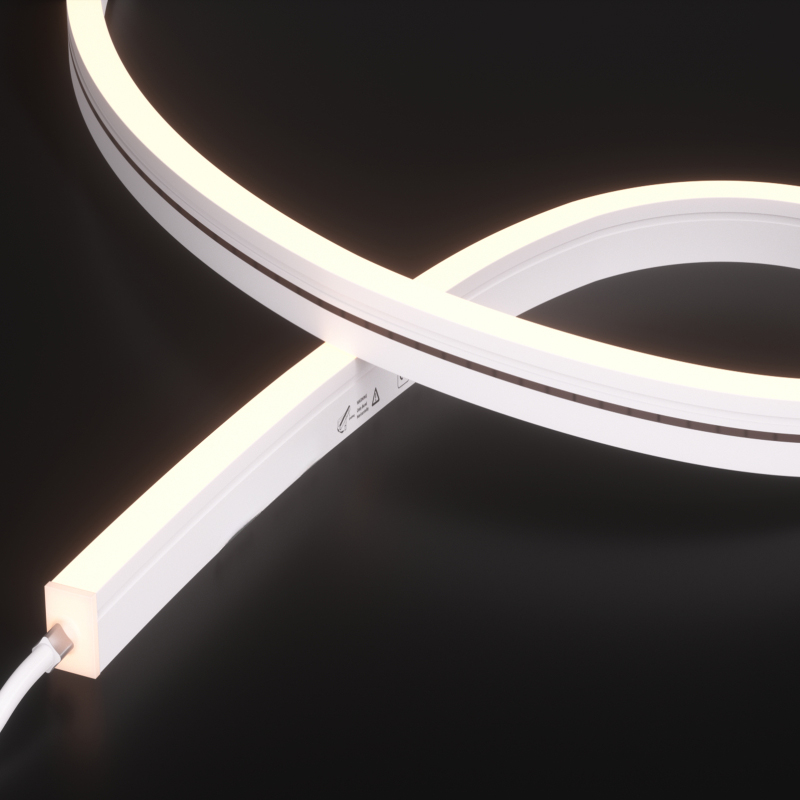

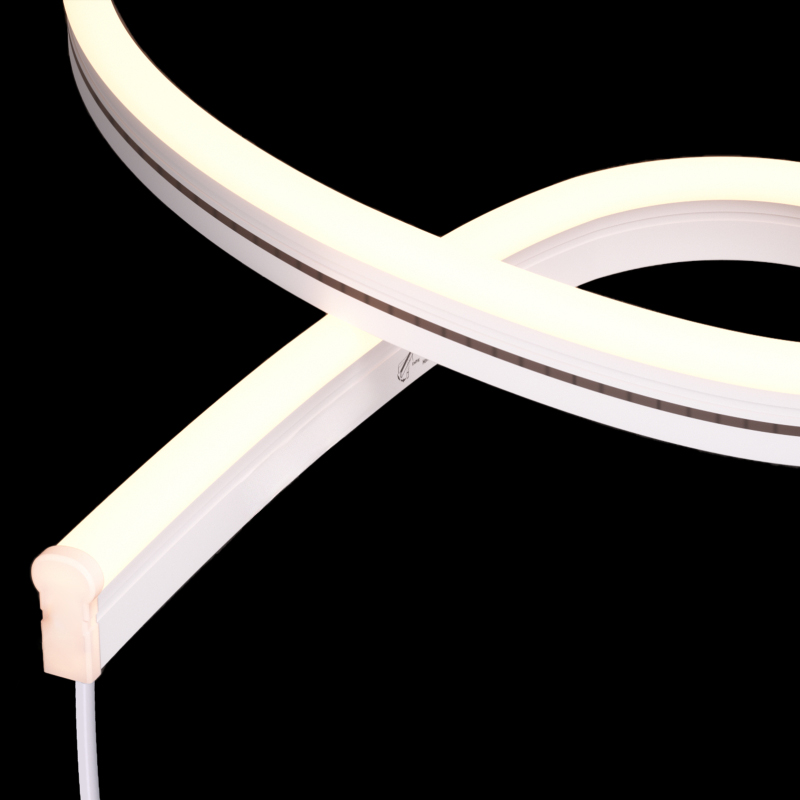

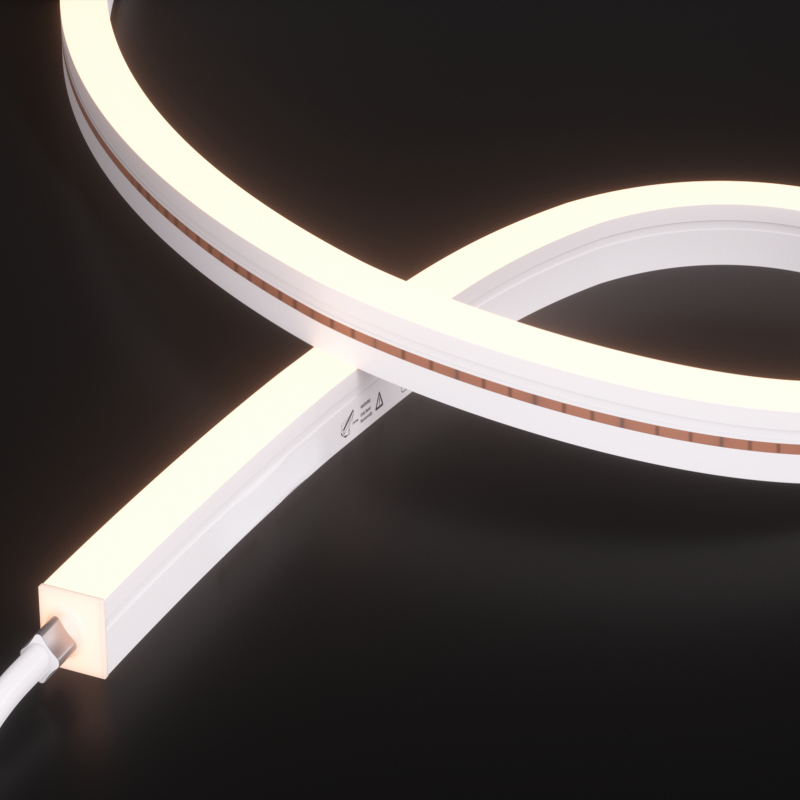

JAH IP67 Rated SERIES
Free Cutting
Wet Location In/Outdoor
Wet Location In/Outdoor
SPECIAL Features
- Light source: high luminous efficiency LED lamp beads, LM80 test certification
- Process material: 3 color silicone extrusion technique is applied
- Cutting marks more clear
- Optical design: unique optical light distribution structure design, uniform light emission on the surface without shadows
- Appearance design: Standard ESD oil spray, anti-dust; good flexibility, simple shape, exquisite and unique
- Product certification: UL, CE, ROHS, UKCA, CB
- Environmental characteristics: salt solution resistance, acid and alkali corrosion resistance, flame retardant resistance, UV resistance
- Working/storage temperature: Ta: -25…55°C / 0…60°C
- Symphony working/storage temperature: Ta: -20…40°C / 0…60°C
- 5 years warranty or working life = 36,000Hrs, whichever comes first
- See Tabs below for details.
Used For
- Signboard lighting
- Architectural contour application
- Outdoor decorative lighting
- Internal decorative lighting
APPLICATIONS
Cable Connectors
Installation Instructions
Architectural Neon Products Brochure
Driver Part Number | Product Description | Input Voltage | Output Voltage | Dimming |
AC – 24VDC – CV Constant Voltage Drivers |
||||
CV 120-277V, 25W, 24VDC, 0-10V Dimming | 120-277V | 24VDC | 0-10V Dimming |
|
CV 120-277V, 60W, 24VDC, 0-10V Dimming: Adjustable output Power Range: 6-60W | 120-277V | 24VDC | 0-10V Dimming |
|
CV 120-277V, 60W, 24VDC, 0-10V Dimming: With J-Box | 120-277V | 24VDC | 0-10V Dimming |
|
CV 120-277V, 100W, 24VDC, 0-10V Dimming: With J-Box | 120-277V | 24VDC | 0-10V Dimming |
|
HLG – 24VDC, 36VDC, 48VDC – CV Constant Voltage Drivers |
||||
24VDC 1.67A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 24VDC | 0-10V Dimming |
|
36VDC 1.12A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 36VDC | 0-10V Dimming |
|
48VDC 0.84A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 48VDC | 0-10V Dimming |
|
24VDC 2.5A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 24VDC | 0-10V Dimming |
|
36VDC 1.7A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 36VDC | 0-10V Dimming |
|
48VDC 1.3A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 48VDC | 0-10V Dimming |
|
24VDC 4A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 24VDC | 0-10V Dimming |
|
36VDC 2.65A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 36VDC | 0-10V Dimming |
|
48VDC 2A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 48VDC | 0-10V Dimming |
|
24VDC 6.3A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 24VDC | 0-10V Dimming |
|
36VDC 4.2A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 36VDC | 0-10V Dimming |
|
48VDC 3.2A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 48VDC | 0-10V Dimming |
|
24VDC 10A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 24VDC | 0-10V Dimming |
|
36VDC 6.7A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 36VDC | 0-10V Dimming |
|
48VDC 5A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 48VDC | 0-10V Dimming |
|
24VDC 13.34A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 24VDC | 0-10V Dimming |
|
36VDC 8.9A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 36VDC | 0-10V Dimming |
|
48VDC 6.7A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 48VDC | 0-10V Dimming |
|
24VDC 20A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 24VDC | 0-10V Dimming |
|
36VDC 13.3A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 36VDC | 0-10V Dimming |
|
48VDC 10A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 48VDC | 0-10V Dimming |
|
24VDC 25A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 24VDC | 0-10V Dimming |
|
36VDC 16.7A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 36VDC | 0-10V Dimming |
|
48VDC 12.5A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 48VDC | 0-10V Dimming |
|
DRBOX – DRIVER BOX FOR INDOOR USE
T-BAR T-Grid – Mounting Bracket
Product Name | Product Description |
RGB Controllers |
|
RGB LED Strip Controller/Remote |
|
RGBW Controllers |
|
RGBW LED Strip Controller/Remote |
|
TW Controllers |
|
Dual Channel Controller & Remote |
|
Touch Screen Wall Controller |
|
JCP5-GBA-DMX RF Touch Panel |
|
4 Channel Dimmer/Fixture Controller |
|
Casambi 4 Channel CBU-PWM4-4 PWM Dimmer/Fixture Controller for RGBW/RGB or static CCT 4 Strips |
|
