Product Features

CONSTRUCTION

• Aluminum extrusion
• Black, white, silver gray, and any other custom-specified RAL finish
• An independent LED uplighting module is available
• Custom patterns with optional L, X and T joiners
• Strong, durable formula for long-lasting color retention
• The diffuser and die-cast aluminum endcaps at the fixture ends overlap to eliminate gaps and visible LEDs

OPTICS

• 5 options of indirect and direct light distributions can be set by dip switch

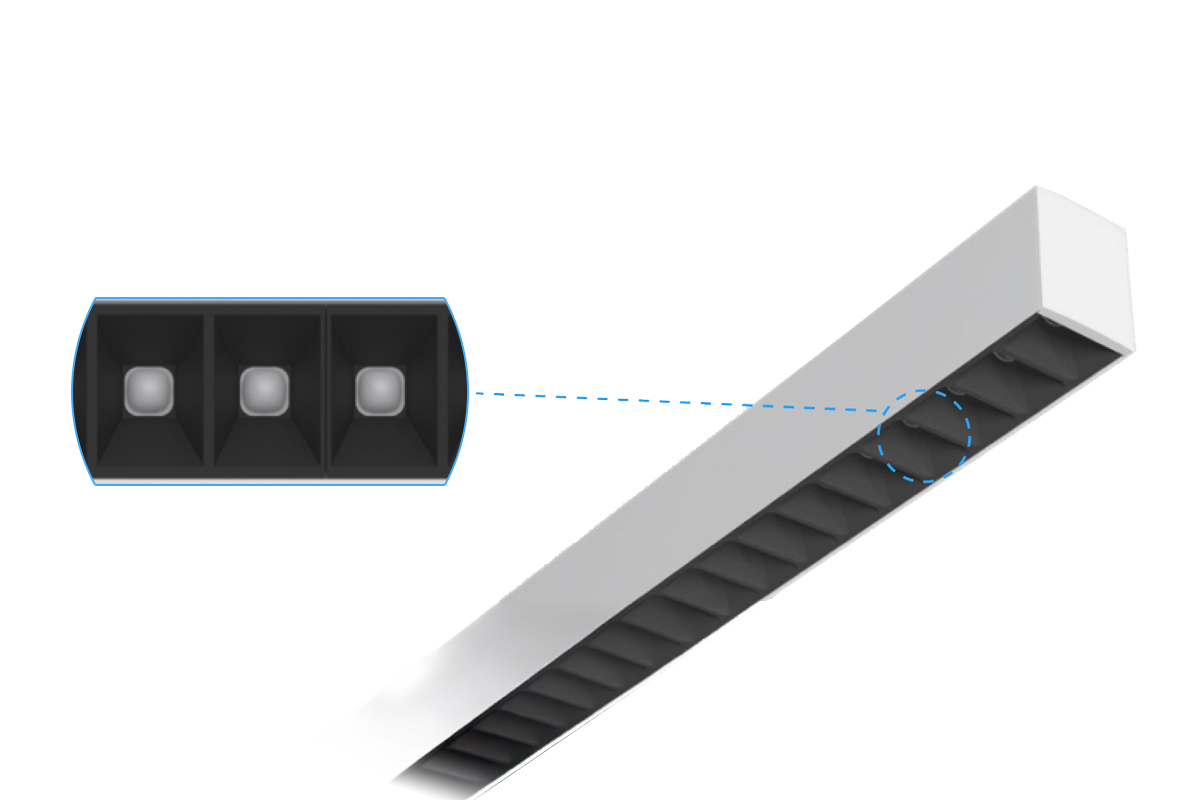

• 4 Direct Optics Options: Diffuser, Louver, Hex Louver, and Anti Glare Micro Louver
• 3 Indirect Optics Options: Diffuser, Louver, Hex Louver

ELECTRICAL

• Power Selectable:
  2Ft (20W/15W/10W);
  4Ft (40W/30W/20W); 6Ft (60W/45W/30W);
  8Ft (80W/60W/40W)
• Input Voltage: CC 120-277VAC Internal driver
• CCT Selectable: 2700K/3000K/3500K/4000K/5000K
• Efficacy: up to 135 lm/W
• Power Factor: >0.90
• CRI: 80 Standard / 90 Optional
• Operating Temp: -4°F to 104°F (-20°C to 40°C)
• Total Harmonic Distortion: <20%

DIMMING & CONTROLS

• 0-10V Dimming Standard
• PIR Sensor Optional
• Bluetooth Controller or Bluetooth Sensor Optional
• Emergency Battery Optional

MOUNTING

• Drywall-hard ceiling pendant mount
• Drop ceiling pendant mount
• Surface mount
• Wall mount
• Trimless Recessed mount kit – Hard ceiling: 2ft / 4ft / 8ft
• Recessed mount with flange kit – Hard ceiling: 2ft / 4ft / 8ft
• T-Grid recessed mount

Lifetime Based on TM21: L70≥179,000 L80≥149,000 L90≥132,000 Hrs.
