Product Features

CONSTRUCTION

• Strong, durable formula for long-lasting color
• Extruded recycled aluminum housing
• The diffuser and endcaps at the ends of the fixture overlap to eliminate gaps and LED visibility

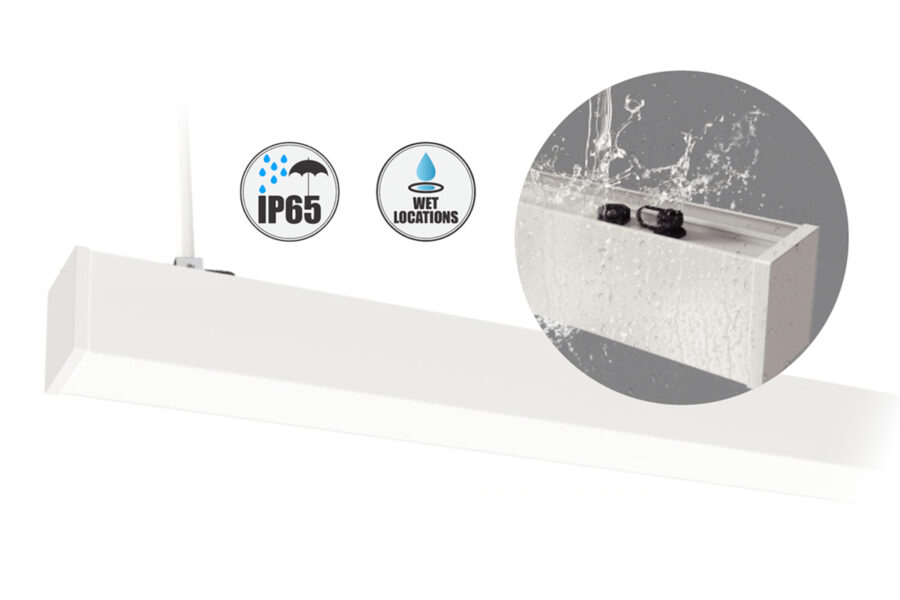

• Housing is completely sealed against moisture and environmental contaminants and IP65 rated

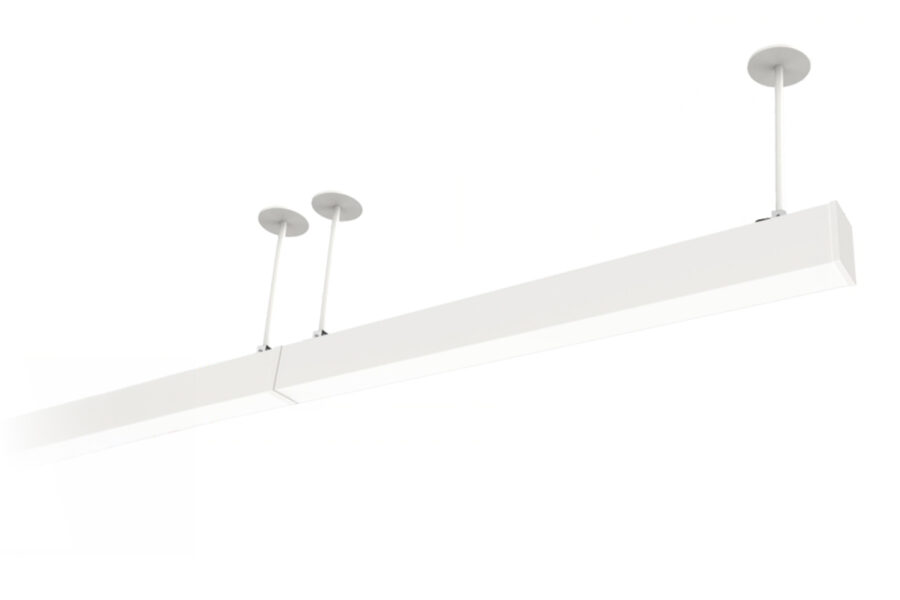

• Pendant, surface or wall mount in 2′, 4′, 6′ and 8′ lengths

OPTICS

• Wide 110° distributions
• CCT Selectable: 3000K, 3500K, 4000K
• CRI: 80 CRI Standard / 90 CRI optional
• High-transmission polycarbonate lens for smooth light distribution and uniformity

ELECTRICAL

• Wattage Selectable: 100%, 80%, 60%
• Input Voltage: CC 120-277VAC Internal driver
• Power Factor: >0.9
• Total Harmonic Distortion: <20%
• Operating Temp: -4°F to 113°F (-20°C to 45°C)

DIMMING & CONTROLS

• 0-10V dimming driver with 0-100% dimming range

MOUNTING

• Surface Mount
• Stem Pendant Mount
• Wall Mount

CERTIFICATIONS & COMPLIANCE

• Wet Location
• IP65 & IK08 Rated
• Natatorium Rated
• Pending: UL Listed

Lifetime Based on TM21: L70≥100,000 Hrs.
