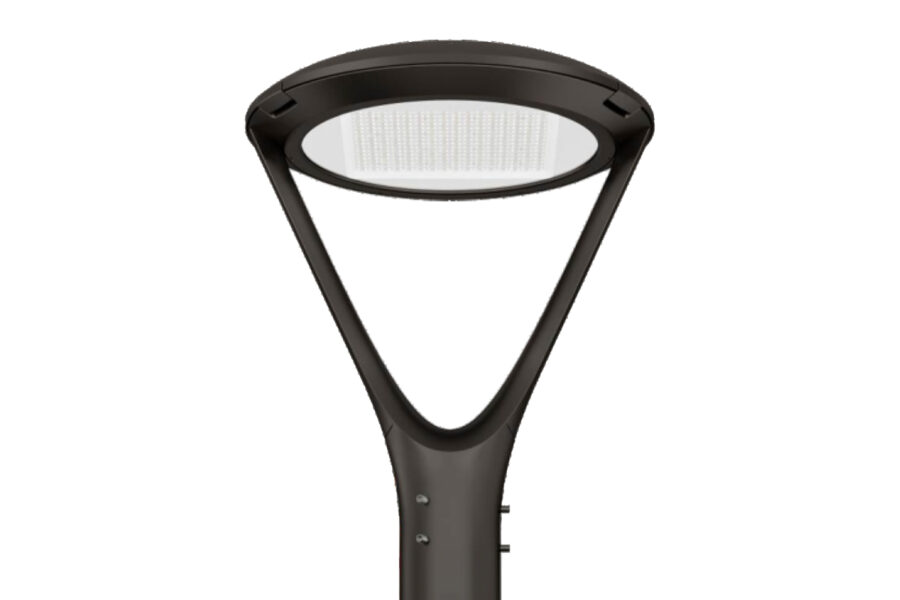

JAPT-CPS SERIES
ARCHITECTURAL POST TOP ROUND LUMINAIRE
WITH SELECTABLE POWER & CCT
WITH SELECTABLE POWER & CCT
PRODUCT FEATURES
- Construction and Materials
• Rugged die-casting aluminum housing with a durable powder-coated finish for long-term, reliable performance
• Dark bronze color is standard. White and black color are available - Optical System
• Type II, Type III, Type IV and Type V distributions
• CCT Selectable: 3000K, 4000K, 5000K - Electrical System
• Power Selectable: 125W/105W/76W, 63W/53W/33W
• Input Voltage: CC 120-277VAC / 347VAC / 480VAC Internal driver
• Efficacy: up to 145lm/W
• Power Factor: >0.92
• CRI: >70
• Ambient Temp: -22°F to 113°F (-30°C to 45°C)
• All models are designed to withstand up to L/N-PE: 10kV, L-N: 10kV surge - Dimming and Controls
• 0-10V Dimming (Standard)
• Photocell (Optional) - Certifications and Compliance
• Wet Location
• Pending: cUL and DLC Listed - Lifetime Based on TM21: 50,000 hours
