PRODUCT FEATURES

Construction and materials

• Heavy gauge extruded aluminum housing and spun aluminum driver housing with Powder Coat Finish options in White (Standard)
• Vacuum formed, single piece acrylic lens and single sheet acrylic matte diffusion cover
• Available in Ø18″ and Ø36”

Optical System

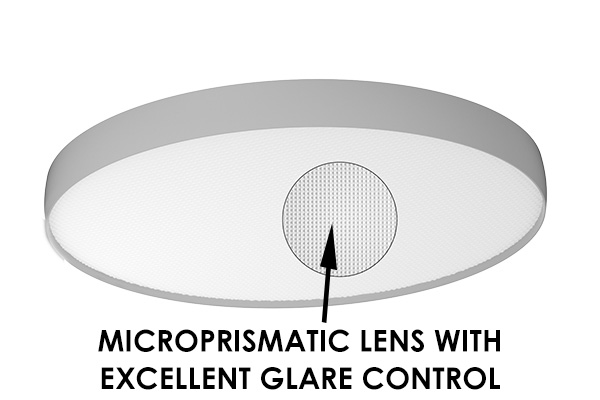

• Light Distribution: 90° Light Distribution Micro-prismatic Optics and 120° Frosted Acrylic

Electrical System

• Input Power: ø18” (40W / 50W) and ø36” (100W / 123W)
• Input Voltage: 120-277VAC
• CCT: CCT Selectable (3000K/3500K/4000K)
• Efficacy: 121 lm/W on average
• Power Factor: >0.90
• CRI: >82
• Operating Temp: -31°F to 113°F (-35°C to 45°C)
• Total Harmonic Distortion: <20%
• Integral Surge Protection: L/N-PE: 2kV, L-N: 2kV

Dimming and Controls

• 0-10V Continuous Dimming Standard

Certifications and Compliance

• ETL Listed
• Ingress Protection: IP20 Suitable for Damp Locations
• RoHS compliant
• Meets FCC Part 15, Subpart B, Class A limits for conducted and radiated Emissions

Lifetime Based on TM21: L70 ≥ 192,000 / L80 ≥ 168,000 / L90 ≥ 139,000 Hrs
