ILLUMINATION

• Adjustable long lasting, efficient ultra bright white LED lamp heads
• One, 0.5W white LED per lamp head
• Unique all inclusive lamp, reflector and lens assembly
• Long-lasting, energy efficient Red or Green LED EXIT sign illumination

ELECTRICAL

• Dual 120/277 voltage standard, optional dual 120V/230V available
• Unique bi-color LED indicator light alerts occupant on battery condition (Green-normal, Red-check battery)
• 3.6V long life, maintenance-free, rechargeable NiCd battery
• Internal solid-state transfer switch automatically connects the internal battery to LED lamp heads for minimum 90-minute emergency illumination
• Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours

MOUNTING

• Mounting canopy included for top or end mount
• Universal knockout pattern on back plate for wall mount

HOUSING

• Injection-molded, engineering grade, 5VA flame retardant, high impact, thermoplastic in white or black finish

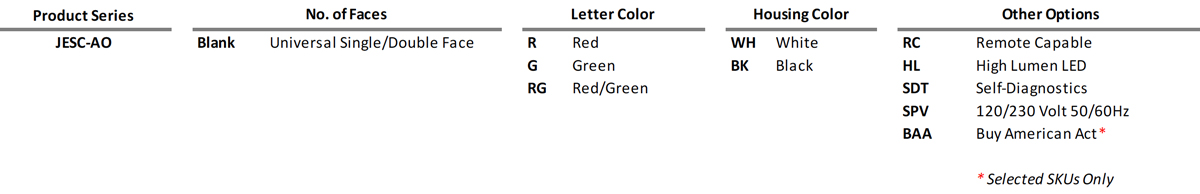

OPTIONS

• SPV: UL Listed for special voltage option
• HL: Provides increased center-to-center spacing (2.0W per head)
• SDT: Self-diagnostic feature performs monthly, biannual, and annual tests to ensure reliable operation and meets electrical and life safety codes
• SDT: Self-diagnostic feature performs monthly, biannual, and annual tests to ensure reliable opera on and meet electrical and life safety codes. Universal 120-277 voltage
• RC: Remote capacity of up to 1.0 Watts

WARRANTY AND LISTINGS

• Five year warranty on all electronics and housing. Battery prorated for five years
• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes
• UL Listed for damp locations (0°C – 40°C)
• Certified to CEC under Title 20 Regulations
•
