PRODUCT FEATURES

Construction and Materials

• One-piece die-cast aluminum housing secures the thermally conductive LED panel and electrical chamber
• Casting thermally conducts LED heat to optimize performance and long life
• With corrosion-resistant powder coating that provides protection and architectural appearance while adapting well to the environment in the garage

Optics

• Scalable Lumen Packages from 3,700 to 8,400 Lumens
• Anti-UV prismatic translucent lens
• Electrical System

Electrical System

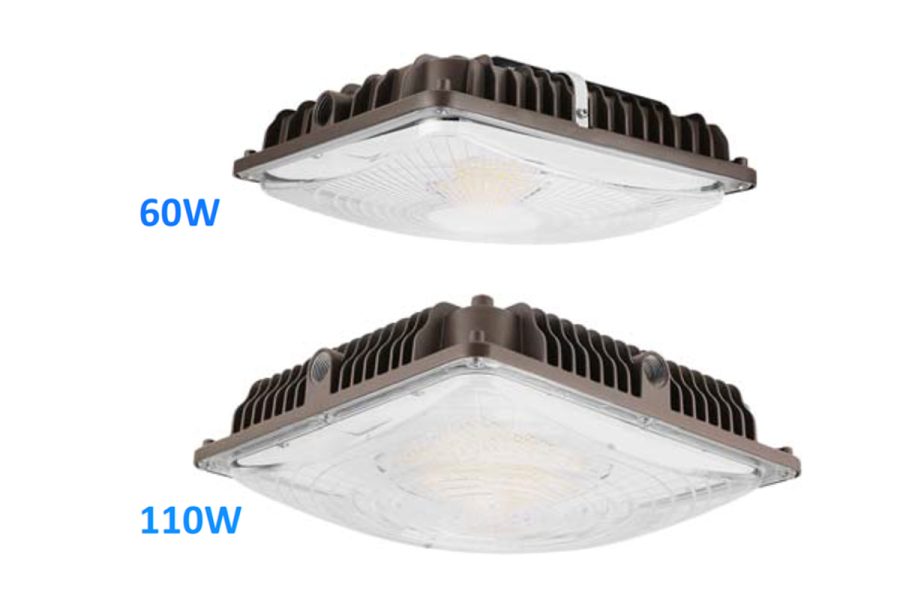

• Power Selectable: 110W/88W/66W/44W and 60W/48W/36W/25W
• Universal 120-277 or 120-347 VAC input voltage
• Power factor >90%, THD <20%
• Operating Temperature Range: -40°C to 40°C (-40°F…+ 104°F)
• Operating with EM battery temperature range: 10°C to 40°C (+50°F…+104°F)

Dimming and Controls

• 0-10V Dimming
• Optional PIR sensor
• Optional Emergency Battery

Certifications and Compliance

• Meets FCC Part 15, Subpart B, Class A limits for conducted and radiated EmissionsRoHS

Lifetime Based on TM21: L80 ≥ 50,000 Hrs.

DOWNLOADS

MORE DOWNLOADS

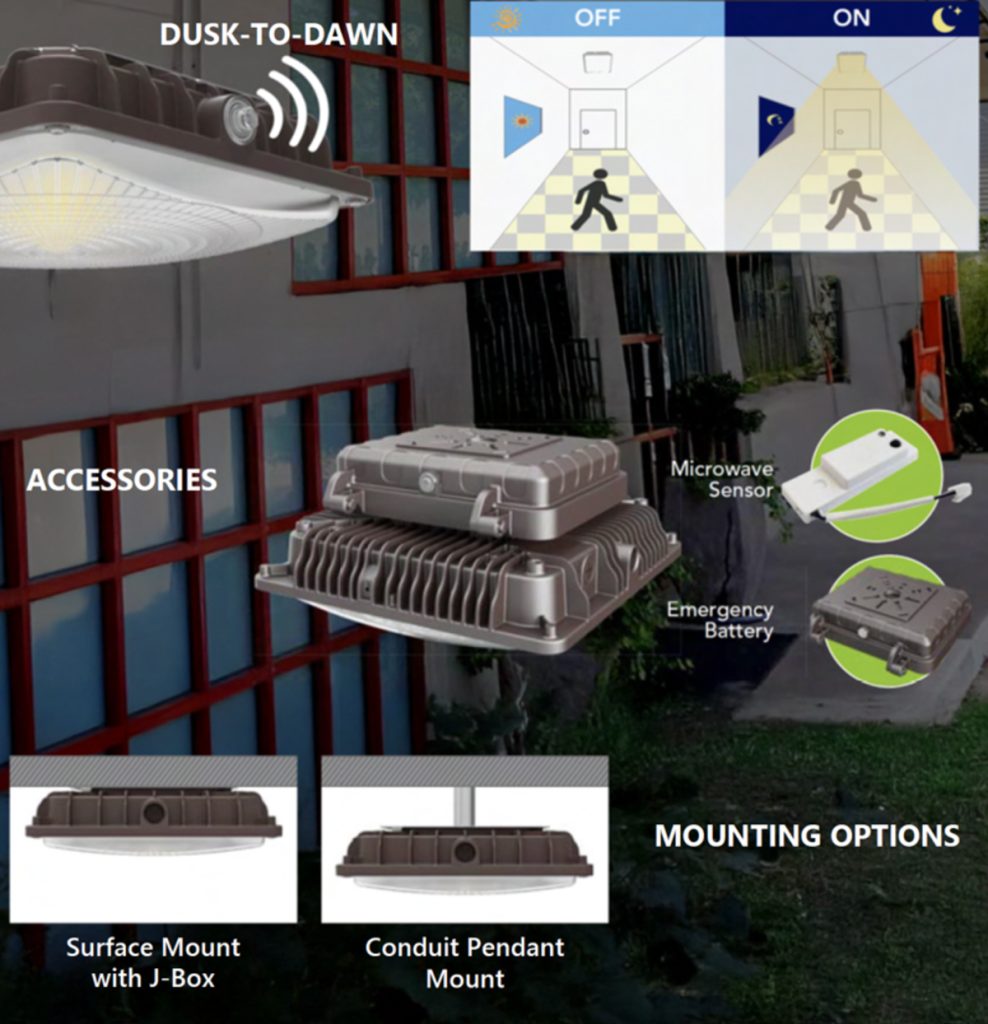

DUSK-TO-DAWN OPTION, ACCESSORIES, MOUNTING OPTIONS

CONTROLS OPTIONS

Go to Controls Page
