JICS NETWORKED LIGHTING CONTROL SYSTEM

ENDLESS POSSIBILITIES AND CUSTOM CONFIGURATIONS
FOR NEW BUILDINGS & RETROFIT PROJECTS

BASIC FACTS AND FEATURES

  • Max qty Zone per Device (Phone or pad): Unlimited
  • Max qty Controller per Zone: 100
  • Max qty Group per Zone: 100
  • Max qty Group or Fixture Controller per Wall Switch: 1
  • Max qty Fixture Controller per group: 100
  • Max qty Wall Switch per zone: 10

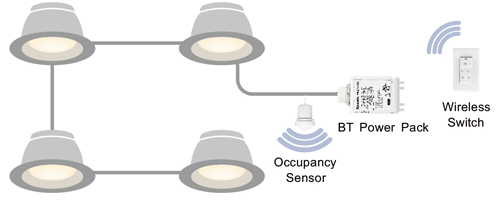

The flexibility of Bluetooth mesh allows spaces to be designed in countless configurations. In the common office and retail installations shown to the right, four standard 0-10V luminaries are connected to a Bluetooth Power Pack, occupancy sensor, and wireless switch.

The entire room can then be controlled by a single Bluetooth switch, with occupancy sensing for energy savings, and minimal new wiring.

t92htmz1

SIGNAL RANGE

  • Up to 35ft. optimum Bluetooth signal range from smart device to first fixture in space with obstructions, furniture etc.
  • Up to 60ft. optimum Bluetooth signal range from smart device to first fixture in open space without obstructions

PARTS

Specifications
Description
Dimensions
Bluetooth® 4 Channel RGB/RGBW/RGBA Fixture Controller
3.78″ x 1.81″ x1.1″
Bluetooth® Single Channel DC Powered Fixture Controller
2.36″ x 0.78″ x0.43″
Bluetooth® Single Channel 0-10V Dimming Power Pack/Controller
3.22″ x 1.99″ x1.25″
Bluetooth® Dual Channel 0-10V Dimming Power Pack/Controller
3.22″ x 1.99″ x1.25″
Bluetooth® Wall switch – Surface/Recessed
4.53″ x 2.86″ x 1.28″
Bluetooth® Solar Wall Controller
3.35″x3.35″x0.51″
Bluetooth® Relay & Fixture/Zone Controller
3.46″x2.49″x1.18″
Low Bay Fixture Integrated Microwave Occupancy sensor (works with JICS-BT-SC-DC)
2.1″ x 1.0″
Fixture integrated or recessed ceiling mount PIR Occupancy sensor works with JICS-BT-SC Bluetooth® fixture controller
Dia. 1.76″ x 2.1″
Bluetooth® Fixture integrated PIR OCC+Daylight high bay sensor
MBL Dia. 1.96″ x 0.79″
HBL Dia. 2.6″ x 0.98″
External Fixture PIR and Daylight Harvesting Sensor for Bluetooth® Controller
4.03″ x 3.91″ x 2.08″
Surface Mount PIR and Daylight Harvesting Sensor for Bluetooth® Controller
Dia. 2.99″ x 2.62″
Surface Mount PIR and Daylight Harvesting Sensor for Bluetooth® Controller
Dia. 2.99″ x 2.62″
