JIL FLOOR
INTEGRATED LIGHTING SERIES

Applications

JIL Floor has IK10, IP65 protection design, can be widely used in indoor and outdoor floors, bicycle lanes, parking lots and other scenes. See Tabs below for details.

Floor Luminaires
Profile Image

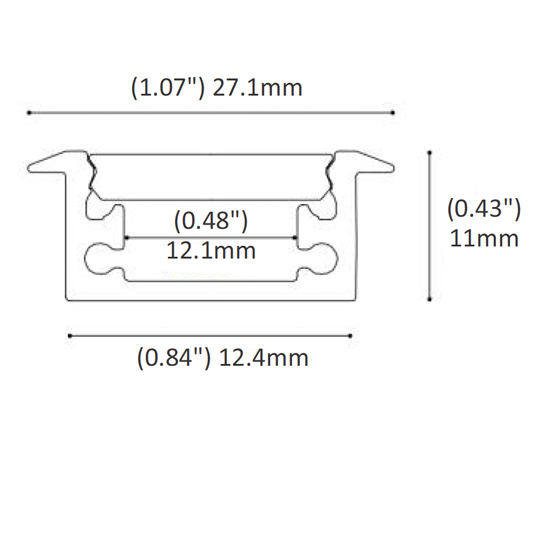

Dimensions
Click to Zoom In
Spec Sheet
Click to Open
Mounting / Application
Profile Colors
Lens Options
Recessed
Anodized Silver
Diffused Lens
2711
2711 floor
Recessed
Anodized Silver
Diffused Lens
Vario Luminaires

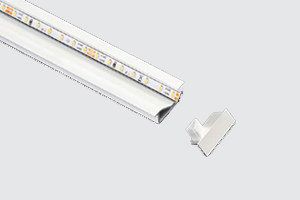

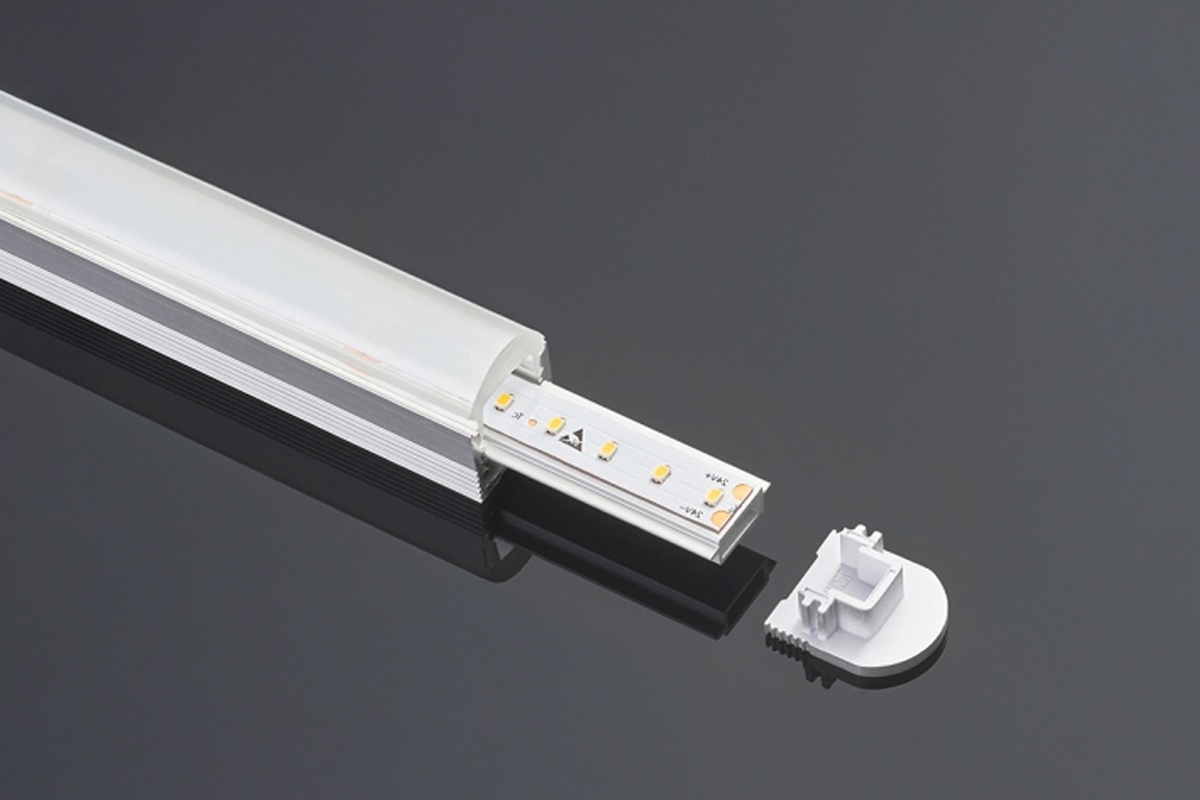

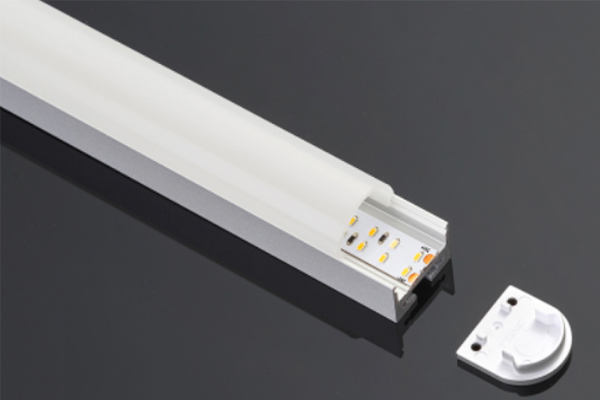

Profile Image

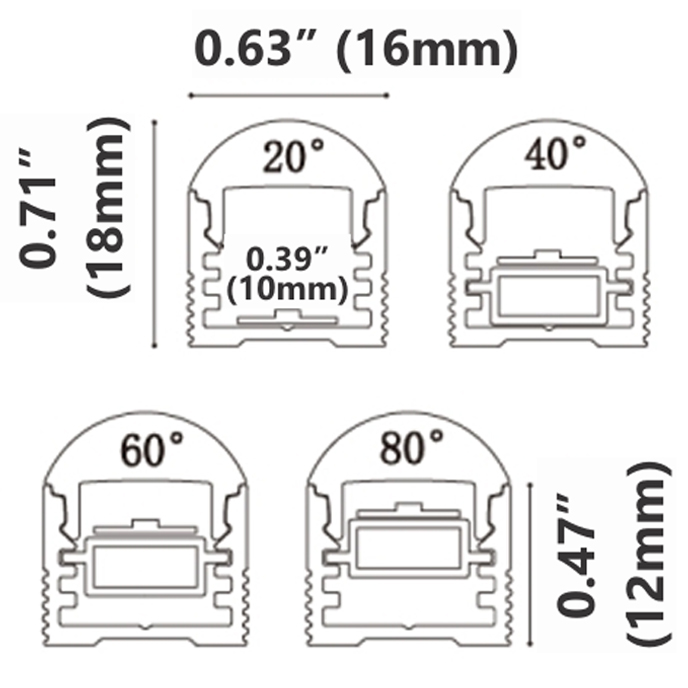

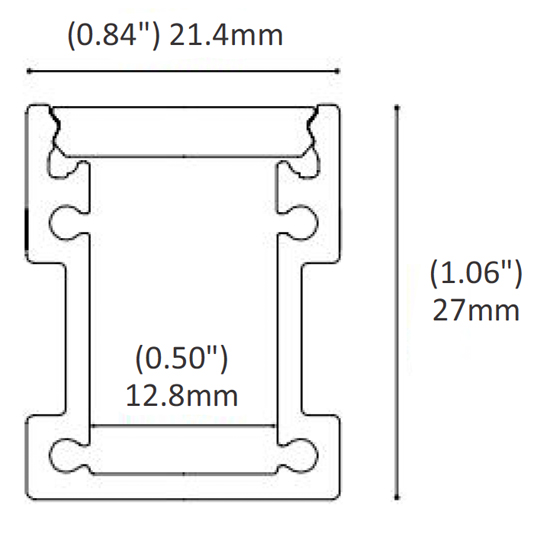

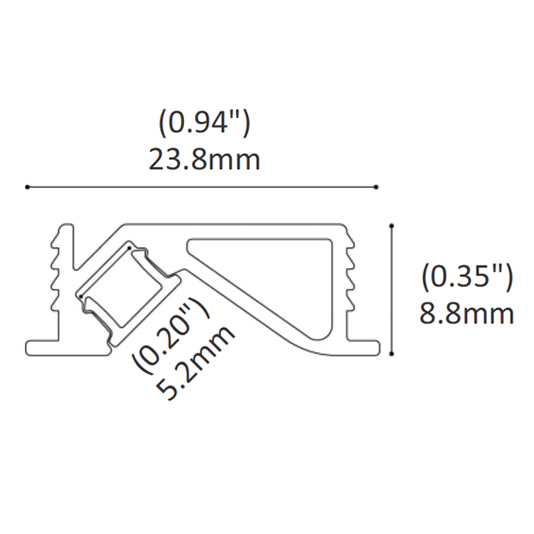

Dimensions
Click to Zoom In
Spec Sheet
Click to Open
Mounting / Application
Profile Colors
Lens Options
Recessed
Anodized Silver
Diffused Lens
Recessed
Anodized Silver
Diffused Lens
Recessed
Anodized Silver
Diffused Lens
Recessed
Anodized Silver
Diffused Lens
Driver Part Number
Product Description
Input Voltage
Output Voltage
Dimming
AC – 24VDC – CV Constant Voltage Drivers
CV 120-277V, 25W, 24VDC, 0-10V Dimming
120-277V
24VDC
0-10V Dimming
CV 120-277V, 60W, 24VDC, 0-10V Dimming: Adjustable output Power Range: 6-60W
120-277V
24VDC
0-10V Dimming
CV 120-277V, 60W, 24VDC, 0-10V Dimming: With J-Box
120-277V
24VDC
0-10V Dimming
CV 120-277V, 100W, 24VDC, 0-10V Dimming: With J-Box
120-277V
24VDC
0-10V Dimming
HLG – 24VDC, 36VDC, 48VDC – CV Constant Voltage Drivers
24VDC 1.67A Dimmable LED Driver IP67, PFC, Metal Case Class 2
120-277V
24VDC
0-10V Dimming
36VDC 1.12A Dimmable LED Driver IP67, PFC, Metal Case Class 2
120-277V
36VDC
0-10V Dimming
48VDC 0.84A Dimmable LED Driver IP67, PFC, Metal Case Class 2
120-277V
48VDC
0-10V Dimming
24VDC 2.5A Dimmable LED Driver IP67, PFC, Metal Case Class 2
120-277V
24VDC
0-10V Dimming
36VDC 1.7A Dimmable LED Driver IP67, PFC, Metal Case Class 2
120-277V
36VDC
0-10V Dimming
48VDC 1.3A Dimmable LED Driver IP67, PFC, Metal Case Class 2
120-277V
48VDC
0-10V Dimming
24VDC 4A Dimmable LED Driver IP67, PFC, Metal Case Class 2
120-277V
24VDC
0-10V Dimming
36VDC 2.65A Dimmable LED Driver IP67, PFC, Metal Case Class 2
120-277V
36VDC
0-10V Dimming
48VDC 2A Dimmable LED Driver IP67, PFC, Metal Case Class 2
120-277V
48VDC
0-10V Dimming
24VDC 6.3A Dimmable LED Driver IP67, PFC, Metal Case Class 2
120-277V
24VDC
0-10V Dimming
36VDC 4.2A Dimmable LED Driver IP67, PFC, Metal Case Class 2
120-277V
36VDC
0-10V Dimming
48VDC 3.2A Dimmable LED Driver IP67, PFC, Metal Case Class 2
120-277V
48VDC
0-10V Dimming
24VDC 10A Dimmable LED Driver IP67, PFC, Metal Case Class 2
120-277V
24VDC
0-10V Dimming
36VDC 6.7A Dimmable LED Driver IP67, PFC, Metal Case Class 2
120-277V
36VDC
0-10V Dimming
48VDC 5A Dimmable LED Driver IP67, PFC, Metal Case Class 2
120-277V
48VDC
0-10V Dimming
24VDC 13.34A Dimmable LED Driver IP67, PFC, Metal Case Class 2
120-277V
24VDC
0-10V Dimming
36VDC 8.9A Dimmable LED Driver IP67, PFC, Metal Case Class 2
120-277V
36VDC
0-10V Dimming
48VDC 6.7A Dimmable LED Driver IP67, PFC, Metal Case Class 2
120-277V
48VDC
0-10V Dimming
24VDC 20A Dimmable LED Driver IP67, PFC, Metal Case Class 2
120-277V
24VDC
0-10V Dimming
36VDC 13.3A Dimmable LED Driver IP67, PFC, Metal Case Class 2
120-277V
36VDC
0-10V Dimming
48VDC 10A Dimmable LED Driver IP67, PFC, Metal Case Class 2
120-277V
48VDC
0-10V Dimming
24VDC 25A Dimmable LED Driver IP67, PFC, Metal Case Class 2
120-277V
24VDC
0-10V Dimming
36VDC 16.7A Dimmable LED Driver IP67, PFC, Metal Case Class 2
120-277V
36VDC
0-10V Dimming
48VDC 12.5A Dimmable LED Driver IP67, PFC, Metal Case Class 2
120-277V
48VDC
0-10V Dimming

DRBOX – DRIVER BOX FOR INDOOR USE

DRBOX SPEC SHEET

T-BAR T-Grid – Mounting Bracket

T-BAR T-GRID SPEC SHEET
Product Name
Product Description
RGB Controllers
RGB LED Strip Controller/Remote
RGBW Controllers
RGBW LED Strip Controller/Remote
TW Controllers
Dual Channel Controller & Remote
Touch Screen Wall Controller
JCP5-GBA-DMX RF Touch Panel
4 Channel Dimmer/Fixture Controller
Casambi 4 Channel CBU-PWM4-4 PWM Dimmer/Fixture Controller for RGBW/RGB or static CCT 4 Strips
K-8000C Manual

Cable Connectors

Linear Luminaire Extrusions Brochure
