Pendant
JLH25 (Up & Down)
SPEC SHEET
INSTALLATION INSTRUCTION*
IES FILES*
*Installation & IES Files coming soon

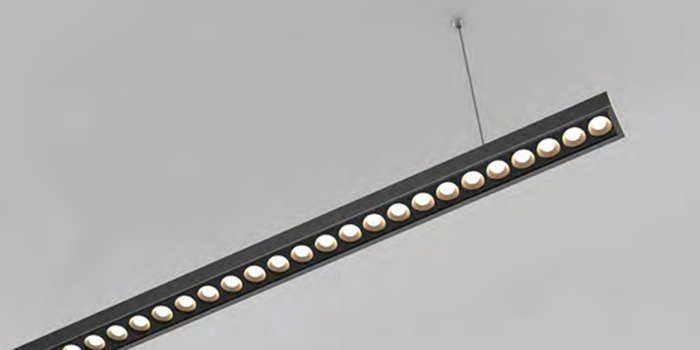

Pendant
JLS25 (Down)
SPEC SHEET
INSTALLATION INSTRUCTION*
IES FILES*
*Installation & IES Files coming soon
Surface
JLH25 (Down)
SPEC SHEET
INSTALLATION INSTRUCTION*
IES FILES*
*Installation & IES Files coming soon
Surface
JLM25 (Down)
SPEC SHEET
INSTALLATION INSTRUCTION*
IES FILES*
*nstallation & IES Files coming soon
Click the image to Zoom In
Driver Part Number | Product Description | Input Voltage | Output Voltage | Dimming |
AC – 24VDC – CV Constant Voltage Drivers |
||||
CV 120-277V, 25W, 24VDC, 0-10V Dimming | 120-277V | 24VDC | 0-10V Dimming |
|
CV 120-277V, 60W, 24VDC, 0-10V Dimming: Adjustable output Power Range: 6-60W | 120-277V | 24VDC | 0-10V Dimming |
|
CV 120-277V, 60W, 24VDC, 0-10V Dimming: With J-Box | 120-277V | 24VDC | 0-10V Dimming |
|
CV 120-277V, 100W, 24VDC, 0-10V Dimming: With J-Box | 120-277V | 24VDC | 0-10V Dimming |
|
HLG – 24VDC, 36VDC, 48VDC – CV Constant Voltage Drivers |
||||
24VDC 1.67A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 24VDC | 0-10V Dimming |
|
36VDC 1.12A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 36VDC | 0-10V Dimming |
|
48VDC 0.84A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 48VDC | 0-10V Dimming |
|
24VDC 2.5A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 24VDC | 0-10V Dimming |
|
36VDC 1.7A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 36VDC | 0-10V Dimming |
|
48VDC 1.3A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 48VDC | 0-10V Dimming |
|
24VDC 4A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 24VDC | 0-10V Dimming |
|
36VDC 2.65A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 36VDC | 0-10V Dimming |
|
48VDC 2A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 48VDC | 0-10V Dimming |
|
24VDC 6.3A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 24VDC | 0-10V Dimming |
|
36VDC 4.2A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 36VDC | 0-10V Dimming |
|
48VDC 3.2A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 48VDC | 0-10V Dimming |
|
24VDC 10A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 24VDC | 0-10V Dimming |
|
36VDC 6.7A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 36VDC | 0-10V Dimming |
|
48VDC 5A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 48VDC | 0-10V Dimming |
|
24VDC 13.34A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 24VDC | 0-10V Dimming |
|
36VDC 8.9A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 36VDC | 0-10V Dimming |
|
48VDC 6.7A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 48VDC | 0-10V Dimming |
|
24VDC 20A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 24VDC | 0-10V Dimming |
|
36VDC 13.3A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 36VDC | 0-10V Dimming |
|
48VDC 10A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 48VDC | 0-10V Dimming |
|
24VDC 25A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 24VDC | 0-10V Dimming |
|
36VDC 16.7A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 36VDC | 0-10V Dimming |
|
48VDC 12.5A Dimmable LED Driver IP67, PFC, Metal Case Class 2 | 120-277V | 48VDC | 0-10V Dimming |
|
DRBOX – DRIVER BOX FOR INDOOR USE
T-BAR T-Grid – Mounting Bracket
