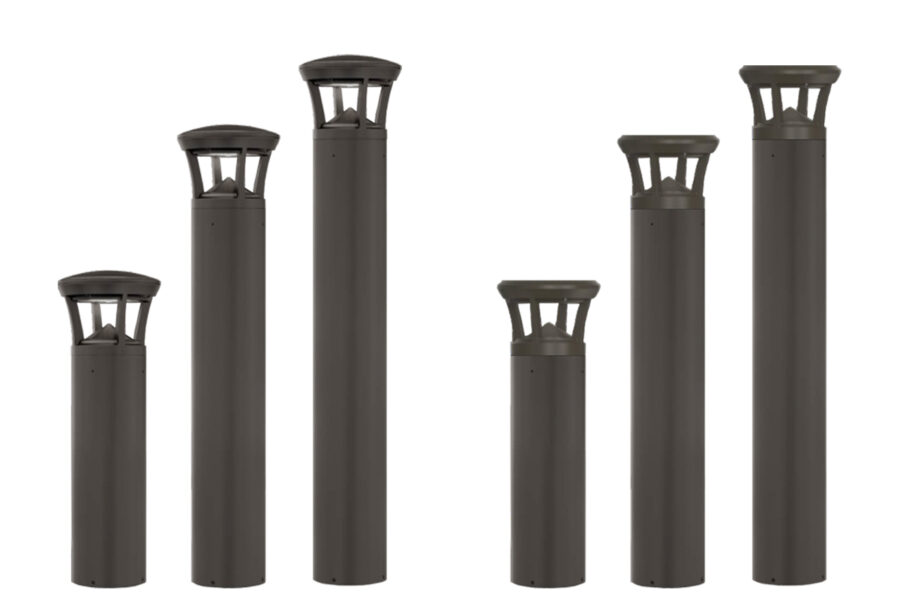

JBL-CPS SERIES
PREMIUM BOLLARD LUMINAIRE
Product Features
Construction and Materials
- Aluminum housing, durable powder-coated finish
Optical System
- Type III and Type V distributions are optional
- Optic available with louver, glare shield or clear lens for increased vertical illumination
Electrical System

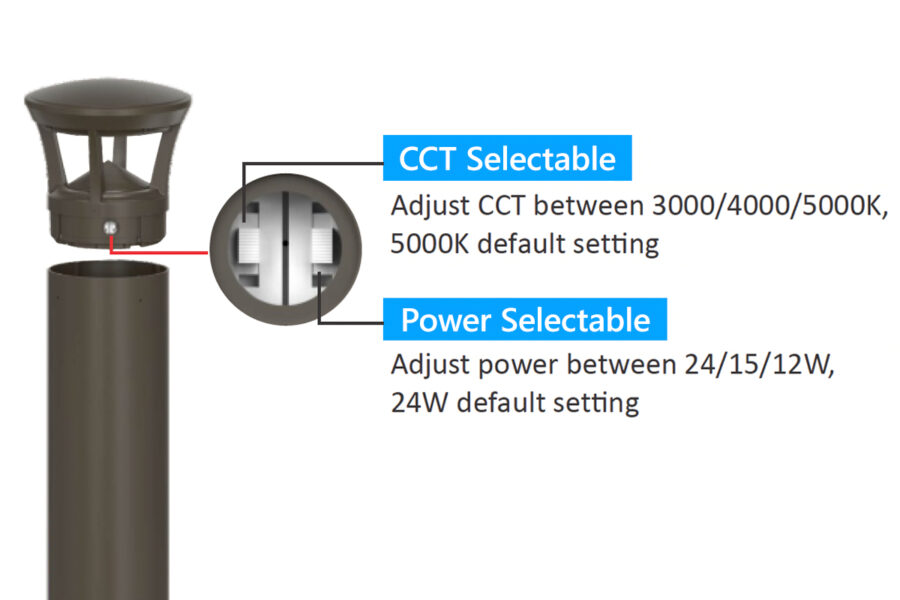

- Power Selectable: 24W , 15W , 12W
- CCT Selectable: 3000K, 4000K, 5000K
- Input Voltage: CC 120-277VAC / 347VAC Internal driver
- Ambient Temp: -40°F to 122°F (-40°C to 50°C)
Mounting
- Three anchor bolts provided for concrete pad mounting
Dimming and Controls
- Equipped with a 0-10V dimmable driver, the dimming wires are available for connection to a dimmer
Certifications & Compliance
- Wet Locations rated
- UL Listed (Pending)
- DLC Listed (Pending)
