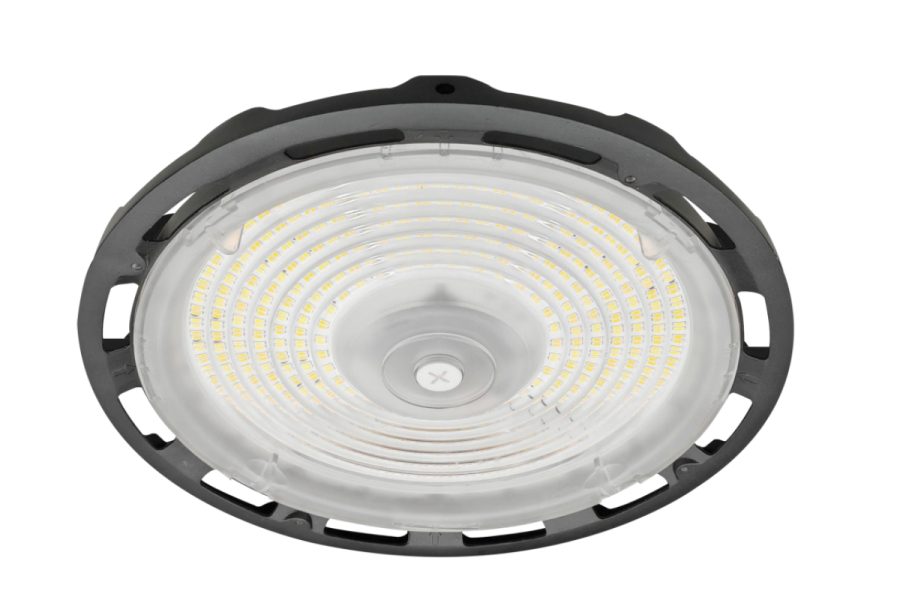

JPRHB SERIES
1% DIMMING IP66 RATED ROUND HIGH BAY SERIES
WITH BUILT-IN SENSOR RECEPTACLE &
NETWORK LIGHTING CONTROLS READY
WITH BUILT-IN SENSOR RECEPTACLE &
NETWORK LIGHTING CONTROLS READY
PRODUCT FEATURES
- Features:
• LED high luminous efficiency and long working life
• High efficiency LED Driver, the wide range input voltage AC120-277V
• Die-cast aluminum cooling design, high quality and better cooling
for LED Tj < 85°C
• Excellent optics design, greatly improve the light utilization and evenness - Construction:
• Shell materials: Aluminum & PC
• Finish: Black (Standard) / Dark Bronze / White / Silver - Dimming:
• 0-10V (1% Dimming)
• Dimming source current from the driver: 150μA
• Minimum dim level: 1% of out (minimum 700mA)
• Maximum output voltage on the dimming wires: 12V
• The dimming lead leakage current is 0.01mA
• The maximum number of drivers that can be connected in parallel to one dimming control circuit is based on this dimming lead leakage current and the calculation is described in the corresponding Design-in Guide - Lifetime Based on TM21: 50,000 Hrs
