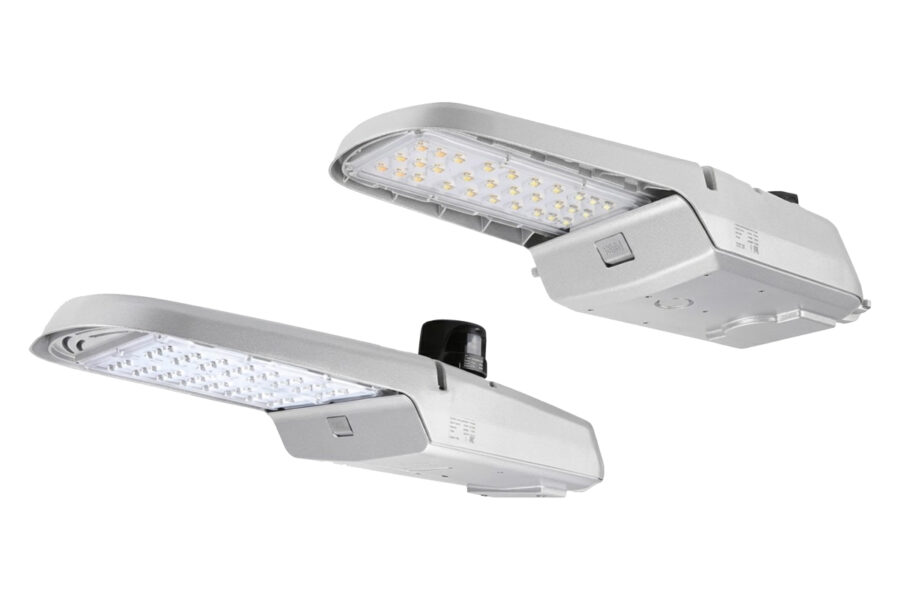

JPRL SERIES
PREMIUM ROADWAY LUMINAIRE
STANDARD FEATURES
Construction and Materials
- Heavy-duty cast aluminum housing and removable door 3G vibration rated to ensure strength of construction and longevity in application.
- LED lens housing is completely sealed against moisture and environmental contaminants.
- Mast arm mount is suit for arms 1-5/8′ or 2-3/8″ O.D. diameter.
Optical System
- Available in IES Type II, III, IV distribution.
- Scalable lumen packages from 9,200 to 20,000 Lumens.
- Optics is precisely designed to shape the distribution, maximizing efficiency and application spacing.
Electrical System
- Primary Input Power: 70W / 105W / 150W
- CCT: 3000K / 4000K / 5000K
- Input Voltage: CC 120-277VAC/347VAC/480VAC Internal driver
- Efficacy: up to 130 lm/W to 141 lm/W
- Power Factor: >0.9
- CRI: 70
- Operating Temp: -40 F to 103°F (-40 C to 40 C)
- Total Harmonic Distortion: <20%
- Integral Surge Protection: 10KV(@120-277V) / 20KV(@347-480V)
Dimming and Controls
- 0-10V dimming driver standard for 10% to 100% dimming
Certifications and Compliance
- UL approved
- Wet Locations
- DLC pending
