PRODUCT FEATURES

Construction and Materials

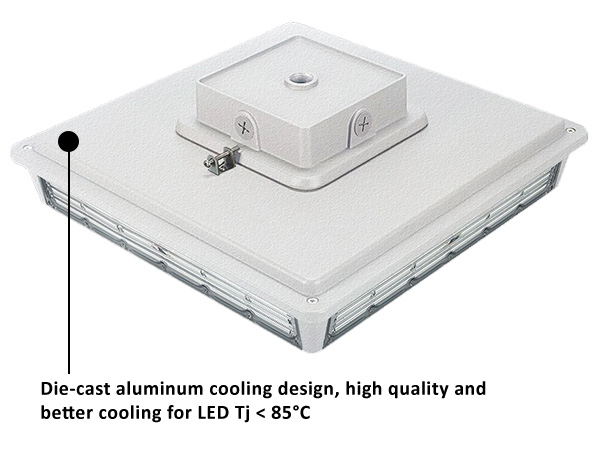

• Die-Cast Aluminum Cooling Design, high quality and improved cooling
  for LED Tj < 85°F

Light Angle

• 270° Standard

Electrical System

• Input Power: 45W, 70W
• Input Voltage: 120-277VAC Standard
• CCT: 3000K, 4000K, 5000K
• Efficacy: 125 lm/W
• Power Factor: >0.95
• CRI: 70 Standard, 80, 90
• Driver Efficacy: 90%
• Operating Temp: -22°F to 113°F (-30°C to 45°C)
• With Internal EM Pack Operating Temp: -22°F to 113°F (-30°C to 45°C)

Dimming and Controls

• 1-10V Dimming Standard

Certifications and Compliance

• FCC Listed, IP66, RoHS

Lifetime Based on TM21: >185,000 Hrs

DOWNLOADS

MORE DOWNLOADS

OPTIONAL FEATURES

• Remote Controlled Plug and Play Microwave Bi-Level Motion Sensor
• Remote Controlled PIR Motion Sensor
• BlueTooth® Indoor Controls System managed with the Jademar BT Local App
• Emergency Battery Backup: 25W, 30W or 40W Option
