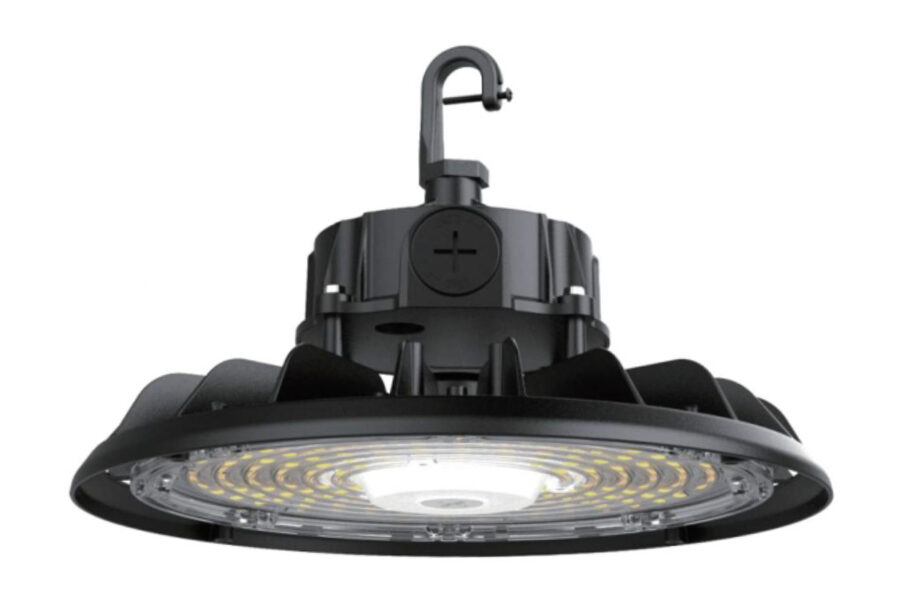

JRHB-ES-CPS SERIES
ROUND HIGH BAY
STANDARD FEATURES
Construction and Materials
- Die-Cast Aluminum Base
Optical System
- Light Distribution: 80°/110°
Electrical System
- Selectable Power:
150W / 120W / 100W
240W / 200W / 150W - Selectable CCT: 3500K / 4000K / 5000K
- Input Voltage: 120-277VAC Standard, 120-347VAC Optional
- Efficacy: 150 lm/W
- Power Factor: >0.9
- CRI: 80
- Operating Temp: -40°F to 113°F (-40°C to 45°C)
- Total Harmonic Distortion: <15%
- Integral Surge Protection: 6kV Surge Protection Standard
Driver Features
- 12V Aux output and Dim-to-Off standard features
Dimming and Controls
- 0-10V Dimming Standard
Certifications and Compliance
- UL Listed
- Ingress Protection: Wet Locations
- Meets FCC Part 15, Subpart B, Class A limits for conducted and radiated Emissions
Lifetime & Warranty
- Lifetime Based on TM21: 148,000 Hrs.
- Warranty: 5 Years limited
