PRODUCT FEATURES

• Construction and Materials:
  • Patent designed to be Curved Fin Shape, maximizing the best heat transmission
  • Aluminum alloy (ADC12)
  • Tempered Glass Lens (8mm) shock and vibration resistant, clear with >90% light transmission
  • Arm for Pole Mounting
• Light Distribution: 120°x80°(RF) / 140°X80
• Electrical System:
  • Input Power: 80W
  • Input Voltage: 100-277VAC 50/60Hz
  • Driver Qty: (1) Meanwell HLG Series Driver
  • CCT: 5000K
  • Efficacy: 100 lm/W on average
  • Power Factor: >0.98
  • CRI: >70
  • Operating Temp: -40°F to 140°F (-40°C to +60°C)
  • Total Harmonic Distortion: <10%
  • Integral Surge Protection: 4KV/6KV Surge Protection Power Supply
• Certifications and Compliance:
  • CSA 250, UL1598, CSA 137, UL844
  • IEC/EN 60079-0, IEC/EN 60079-1, IEC/EN60079-15, IEC/EN60079-31
  • Class 1 Div 2, Group A, B, C, D
  • Ingress Protection: IP67
  • High protection grade for waterproof and dust-proof
  • RoHS compliant
  • Meets FCC Part 15, Subpart B, Class A limits for conducted and radiated Emissions
• Lifetime Based on TM21: L70 ≥ 181,000 / L80 ≥ 132,000 / L90 ≥ 101,000 Hrs

DOWNLOADS

MORE DOWNLOADS

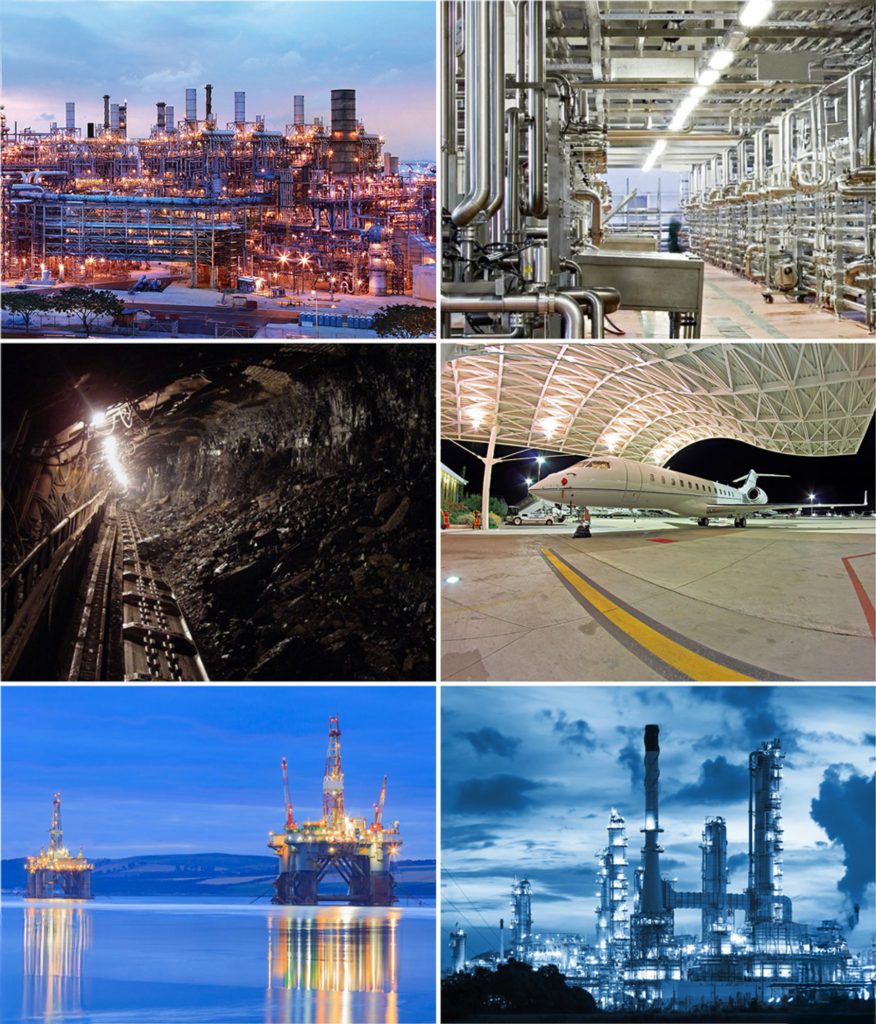

HAZARDOUS LOCATIONS
