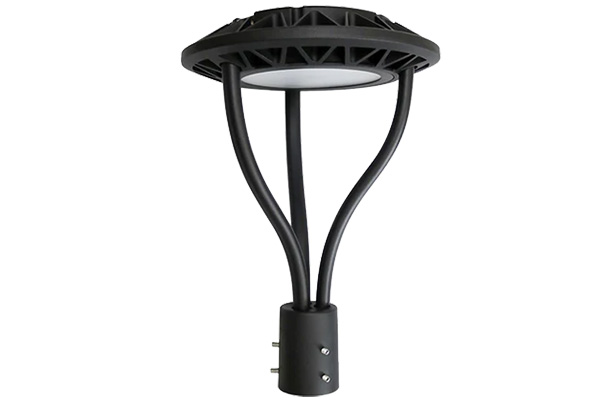

JRPT-CPS SERIES
ARCHITECTURAL ROUND POST TOP LUMINAIRE
WITH SELECTABLE POWER & CCT
WITH SELECTABLE POWER & CCT
PRODUCT FEATURES
- Construction and Materials:
• High-pressure Die Cast Aluminum Housing with Powder Coat Finish for Corrosion Resistance
• High quality Polycarbonate (PC) lens optimizes lumen output
• Heat-resistant and gas tight rubber seal for high IP rating (IP65) - Optical System:
• High brightness lumileds LED chips. High quality tempered glass
• Optics – 120° beam angle - Electrical System:
• Power: 40W / 60W / 100W / 150W
• Input Voltage: 120-277VAC
• Efficacy: 145 lm/W on average
• Power Factor: >0.9
• CRI: >70
• Operating Temp: -40°F to 104°F (-40°C to 44°C)
• Total Harmonic Distortion: <10%
• Integral Surge Protection: 4kV Surge Protection Standard - Dimming and Controls: 0-10V Continuous Dimming Standard
- Certifications and Compliance:
• ETL Listed
• DLC Premium Listed
• Complies with Dark Sky Requirements
• Ingress Protection: IP65 for Wet Locations
• Meets FCC Part 15, Subpart B, Class A limits for conducted and radiated Emissions - Lifetime Based on TM21: L70 ≥ 150,000 / L80 ≥ 120,000 / L90 ≥ 61,000 Hrs
