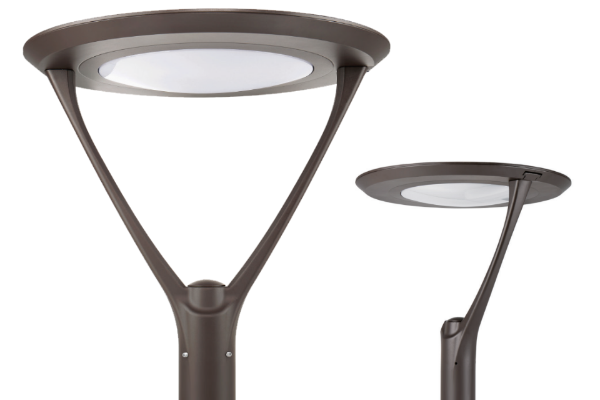

JRPT-M01 SERIES
ARCHITECTURAL ROUND POST TOP LUMINAIRE
WITH SELECTABLE POWER & CCT
WITH SELECTABLE POWER & CCT
PRODUCT FEATURES
- Construction and Materials:
• Die Cast Aluminum Housing and Polycarbonate Lens
• Standard receiver mount slip-fits onto 3in OD pipe tenon. An adapter is included with each luminaire to slip-fit 2-3/8in OD pipe tenon - Optical System:
• Light Distribution: General and Type V - Electrical System:
• Power: 45W, 70W, 87W, 130W
• Input Voltage: 120-277VAC
• Efficacy: 138 lm/W on average
• Power Factor: >0.9
• CRI: >70
• Operating Temp: -40°F to 113°F (-40°C to 45°C)
• Total Harmonic Distortion: <15%
• Integral Surge Protection: 10kV Surge Protection Standard - Dimming:
• 1-10V Continuous Dimming Standard - Certifications and Compliance:
• UL Listed
• DarkSky
• Ingress Protection: IP66 for Wet Locations
• RoHS Compliant
• Meets FCC Part 15, Subpart B, Class A limits for conducted and radiated Emissions - Lifetime Based on TM21: L70 ≥ 150,000 / L80 ≥ 120,000 / L90 ≥ 61,000 Hrs
