JRTDL SERIES
T-GRID LIGHTING SYSTEM

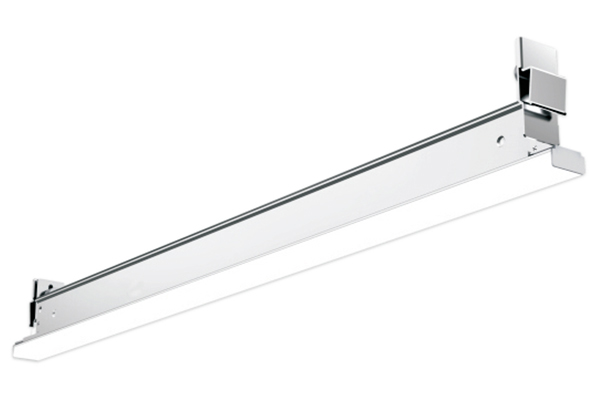

SEPARATE DESIGN WITH LED MODULE AND T-GRID BRACKET
SEPARATE DESIGN WITH LED MODULE AND T-GRID BRACKET
Product Features
Construction
- Unique separate design with LED module and T-Grid bracket

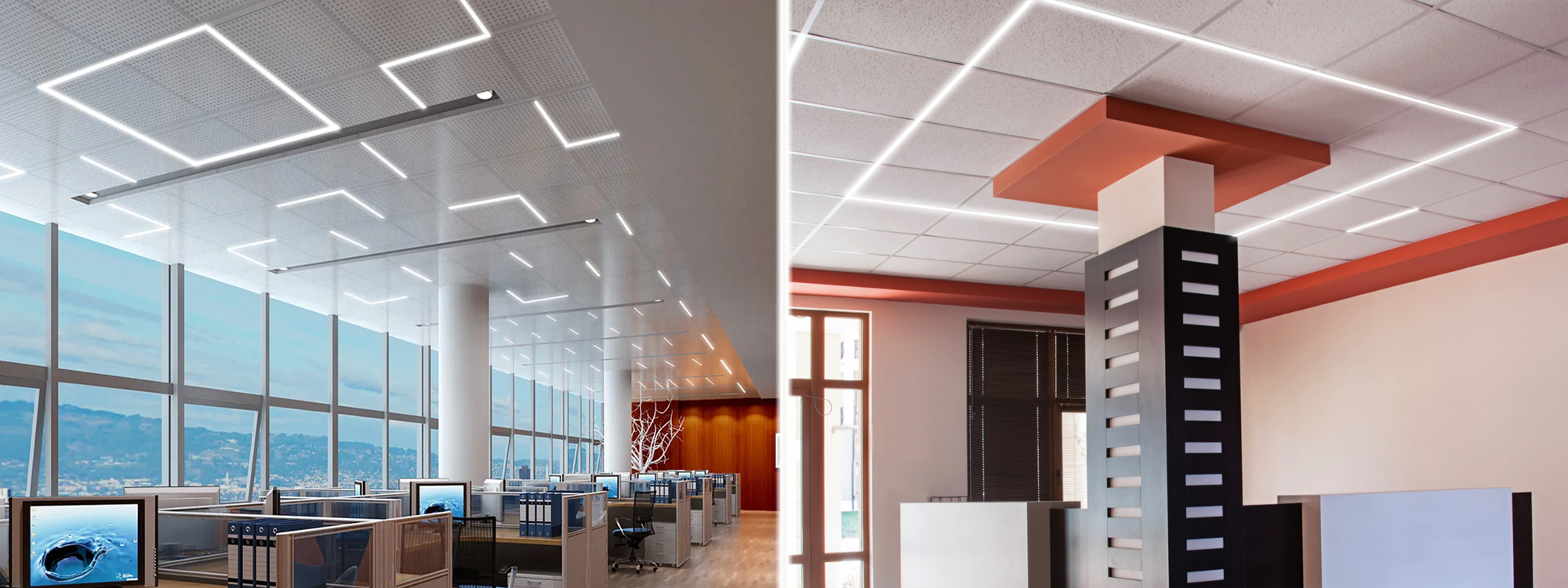

- LED module can follow the ceiling elements in many different ways
- Can be installed in many configurations by replacing any of the cross tees between the main runners of the grid ceiling assembly
- 2FT and 4FT units with 9/16” and 15/16” configurations and adapt remote driver which parallel connects 3 units per driver
Electrical Parameters
- Wattage: 2′-10W & 4′-20W
- Nominal Efficacy: up to 130 lm/W, 650 lm/Ft
- CCT: 3000K / 3500K / 4000K / 5000K
- CRI: >80 Standard / 90 Optional
- Input Voltage: 120-277VAC
Controls & Dimming
- D10: 120-277VAC, Dims to 10% (Standard)
- D01: 120-277VAC, Dims to 1%
Mounting
- It is a lighting solution that can be replaced with 9/16″ and 15/16″ removable cross tee of the grid ceiling, allowing our linear light to be integrated into the suspended ceiling
- Custom pattern
- Plenum rated cable and connector option
Warranty
- 10 Years Limited Warranty
