PRODUCT FEATURES

Construction and Materials

• Housing: Impact resistant polycarbonate
• Lens: Impact resistant diffused or prismatic polycarbonate
• Clips: Stainless steel

Optical System

• 118° Light Distribution Static; 115° Light Distribution CPS

Electrical System

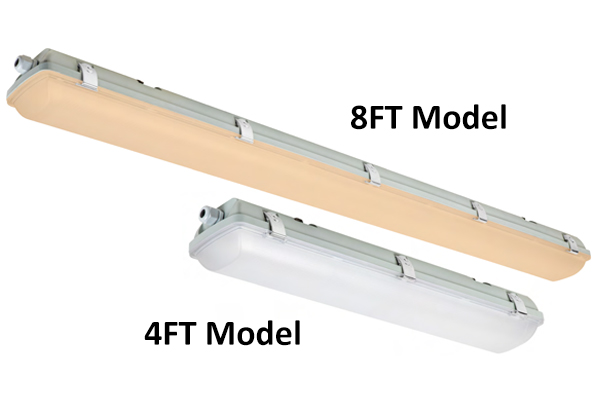

• Length Options: 2FT, 4FT and 8FT
• Power Options: 20W/25W/30W/34W/38W/45W/65W/75W/90W
• CCT: Static [4000K/5000K]; Selectable [3500K/4000K/5000K]
• Input Voltage: 120-277VAC
• Efficacy: >135 lm/W
• Power Factor: 0.95
• CRI: >80
• Operating Temp: -22°F to 113°F (-30°C to 45°C)
• With Internal EM Pack Operating Temp: -22°F to 113°F (-30°C to 45°C)
• Total Harmonic Distortion: <15%
• Integral Surge Protection: L/N-PE: 2kV, L-N: 2kV

Dimming and Controls

• 1-10V Dimming Standard

Certifications and Compliance

• UL & DLC Listed (see page 2 of Spec sheet for listed models)
• Ingress Protection: IP66 Rated for Wet Locations
• IK09 Impact Resistant Rated
• RoHS compliant
• Meets FCC Part 15, Subpart B, Class A limits for conducted and radiated Emissions

Lifetime Based on TM21: L70 > 184,000 / L80 > 169,000 / L90 > 137,000 Hrs

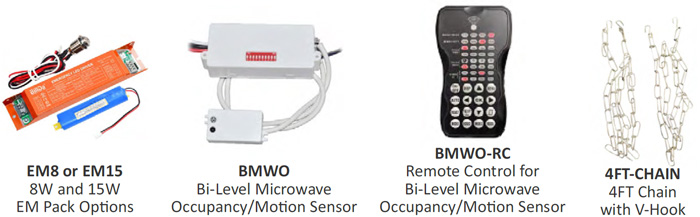

OPTIONAL FEATURES
