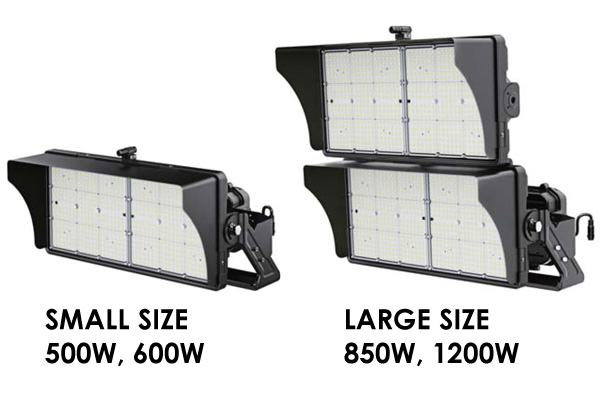

JSLP-M05 SERIES
“STACKABLE” SPORTS LIGHTER
STANDARD FEATURES
Construction and Materials
- Strong and durable sealed die-casting profile for outdoor applications
- Low profile, compact design minimizes wind load requirements
- Housing is completely sealed against moisture and environmental contaminants (IP65)
Installation
- Designed for installation with included trunnion bracket
- The Yoke Adaptor (option) is designed to slipfit a 2 3/8″ to 3″ O.D. tenon
Optical System
- Available in NEMA 2Hx2V, 3Hx3V, 4Hx4V, 5Hx5V, 6Hx6V distributions
- Light engines are available in standard 4000K, 5000K and 5700K (70/80/90 CRI) configurations
- Scalable Lumen Packages from 72,000 to 180,000 Lumens
- Optics is precisely designed to shape the distribution, maximizing efficiency and application spacing
Electrical System
- Ultra-wide input voltage: 200-480VAC or 120-277V
- Dimming: Standard with 0-10V dimming driver(s)
- Efficacy: up to 153 lm/W
- Power Factor: ≥90%
- CRI: 70/80/90 CRI (Optional)
- Operating Temp: -40°F to 50°F (-40°C to 122°C)
- Total Harmonic Distortion: <15%
- Integral Surge Protection: Built in surge suppression with max 40KV
Dimming & Controls
- 0-10V Continuous Dimming Standard
Certifications and Compliance
- UL Listed
- cUL Wet Locations Listed Installation
Lifetime Based on TM21: 100,000 Hrs
