CONSTRUCTION & MATERIALS

• Housing: Durable aluminum alloy construction, available in Gray or Black finish

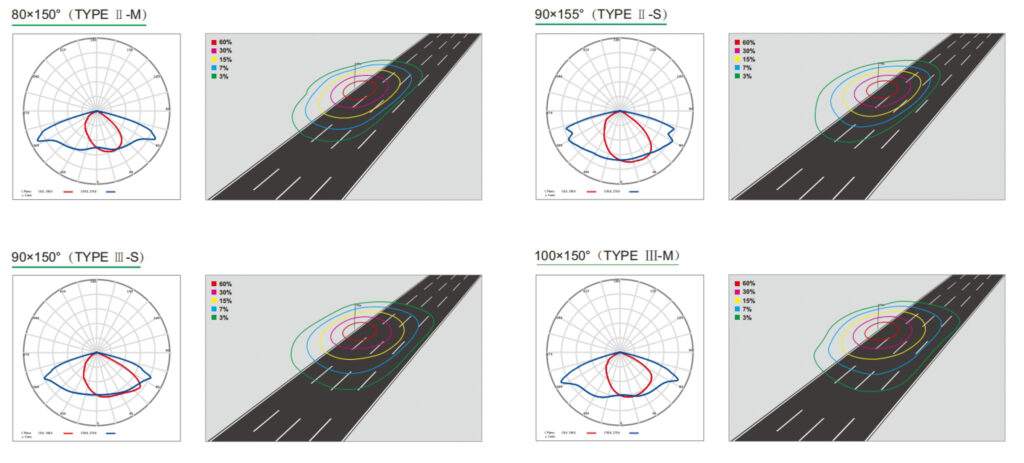

• Optics: Available with Type II and Type III light distributions
• Mounting: Compatible with slip fitter and optional pole adapter
• Tool-less entry: Not explicitly mentioned — may still need to confirm with Elite
• Powder coat finish: Not specified, but can be assumed from “Aluminum alloy (Gray or Black Color)”
• Photocontrol receptacle / ANSI compatibility: Not mentioned in any file – must be confirmed with Jason if needed

ELECTRICAL SYSTEM

• LEDs: Philips Lumileds 5050
• Dimming & Control:
  ◦ MPPT Controller
  ◦ Timer Dimming
  ◦ PIR & Microwave Motion Sensor
• Voltage: System voltages confirmed as:
  ◦ 12.8V for 20W–50W models
  ◦ 25.6V for 70W & 120W models
• Charging Time: Approx. 6 hours
• Runtime: Designed to run for 3 consecutive rainy days (w/ motion sensor)
• Work Temperature: -20°C to +60°C

DOWNLOADS

MORE DOWNLOADS

REGULATORY & VOLUNTARY QUALIFICATIONS

Ingress & Impact Protection: IP66 / IK09

WARRANTY

10 Years Warranty is standard on luminaire and components
