PRODUCT FEATURES

Lens

• Polycarbonate lens

Electrical System

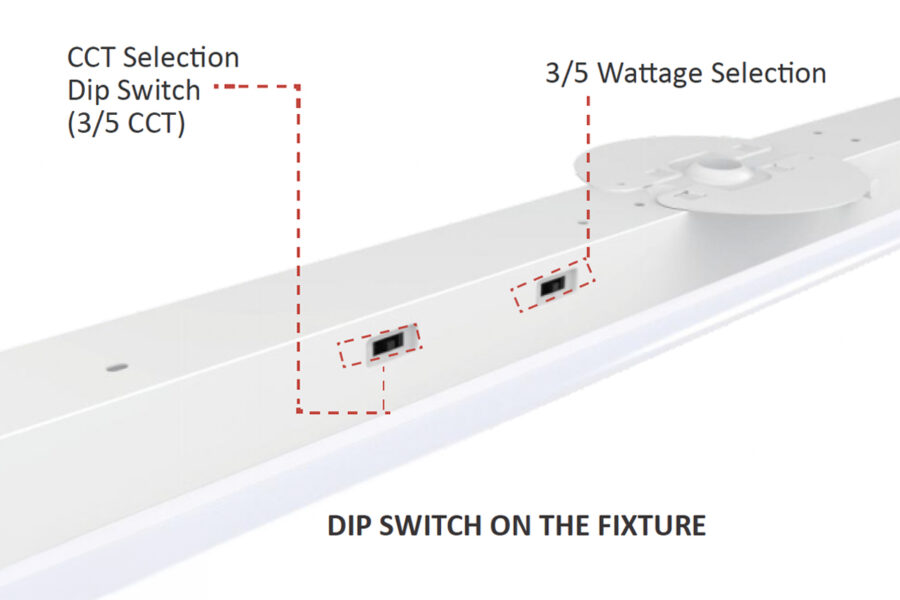

• Power Selectable:
  4′-40W (40W, 32W, 24W)
  4′-50W (50W, 40W, 30W)
  4′-60W (60W, 50W, 40W, 30W, 25W)
  8′-80W (80W, 70W, 60W)
  8′-100W (100W, 90W, 80W, 60W, 40W)
• Input Voltage: CC 120-277VAC / 347VAC Internal driver
• CCT Selectable:
  4′-40W / 4′-50W / 8′-80W: 3500K/4000K/5000K
  4′-60W / 8′-100W: 3500K/4000K/5000K/5700K/6500K
• Efficacy: 130 lm/W
• Power Factor: 0.90
• CRI: 80
• Operating Temperature Range: -40°C to 45°C (-40°F to 113°F)
• Storage Temperature Range: -40°C to 80°C (-40°F to 176°F)
• Integral Surge Protection: L/N-PE: 2kV, L-N: 2kV

Dimming and Controls

• 0-10V Dimming

Mounting Options

• Surface Mount (Standard)
• Suspension Mounting Kit

DOWNLOADS

MORE DOWNLOADS

OPTIONAL FEATURES

• Bi-Level Microwave Occupancy/Motion Sensor
• Bi-Level PIR Sensor
• 8W and 15W Emergency Battery Pack
