Product OVERVIEW

• 24°-60° beam angle adjustable
• High efficiency 90lm/W
• 3 wattage selectable by DIP switch
• 5 CCT selectable by DIP switch
• 355 degree rotate horizontally and 90 degree rotate vertically
• Built-in flicker free driver
• Triac dimming
• CRI90

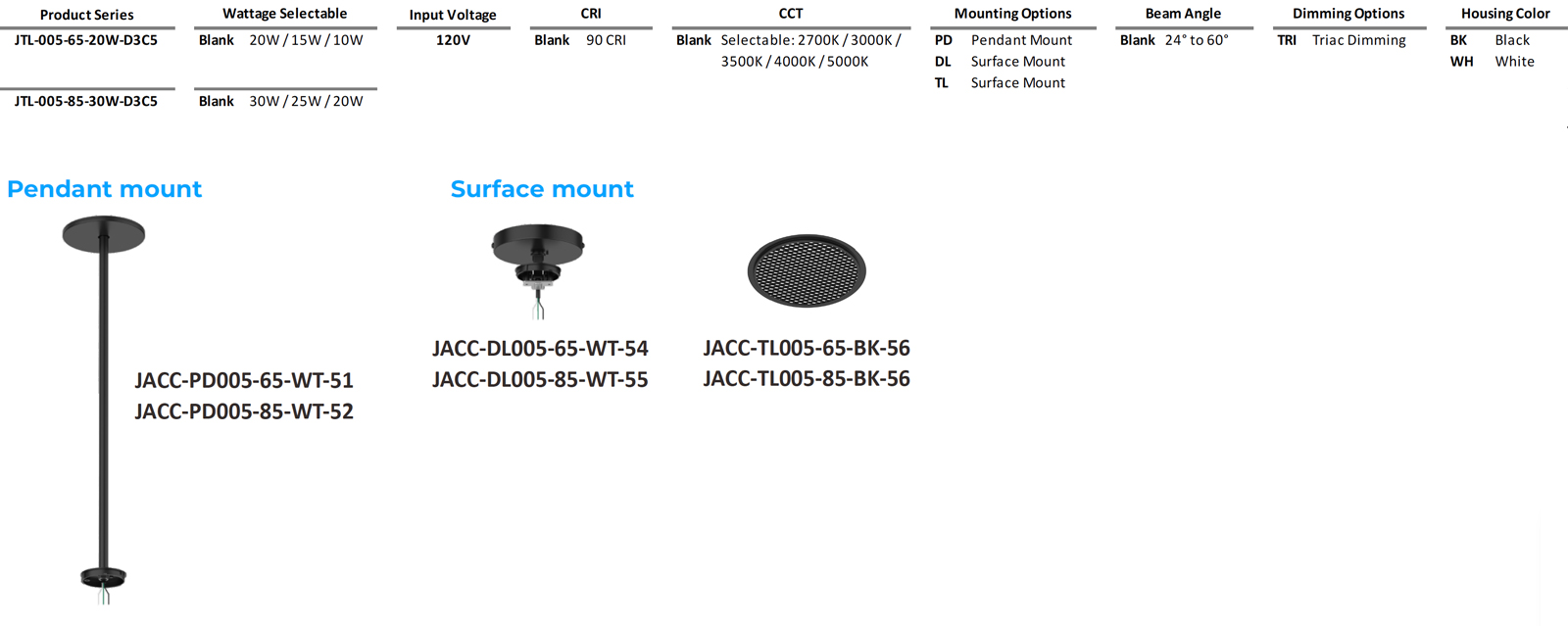

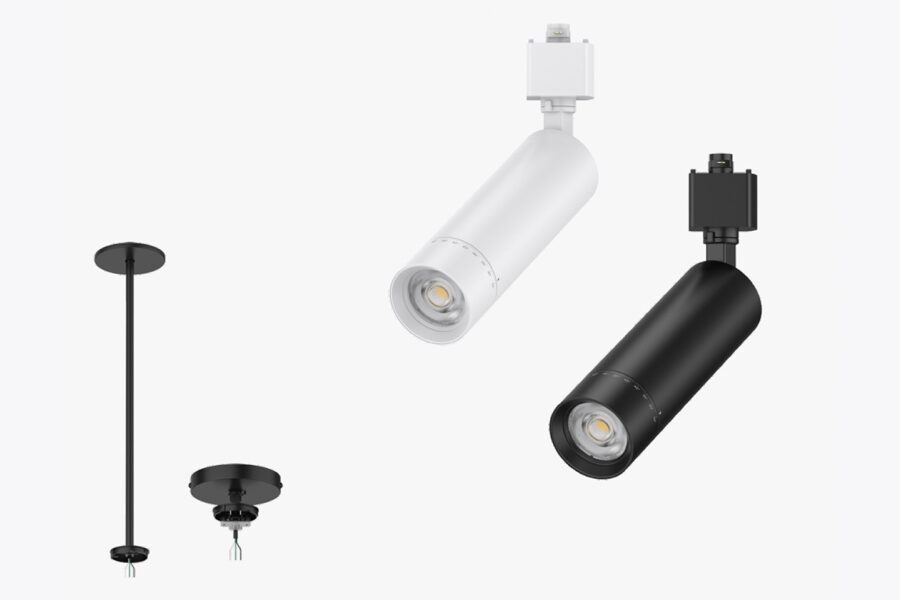

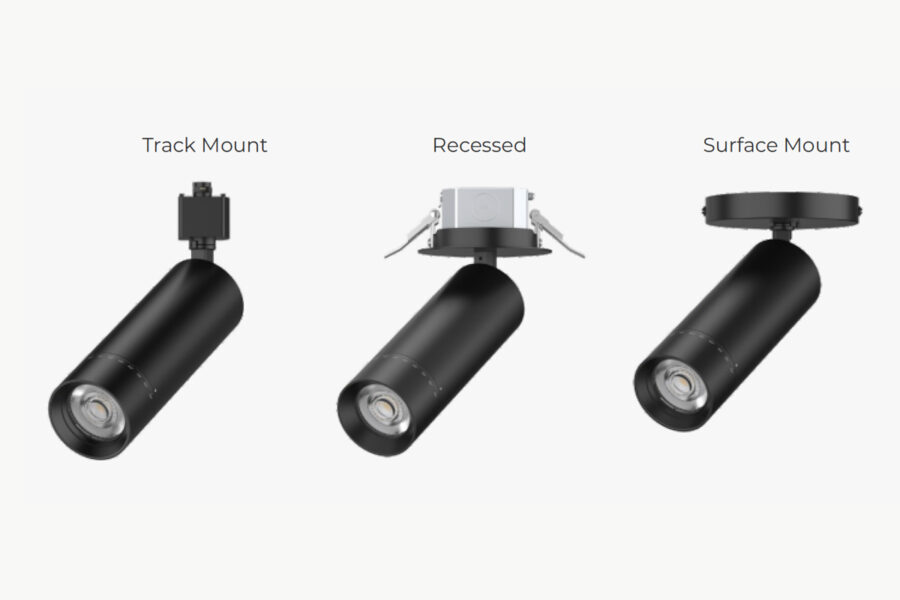

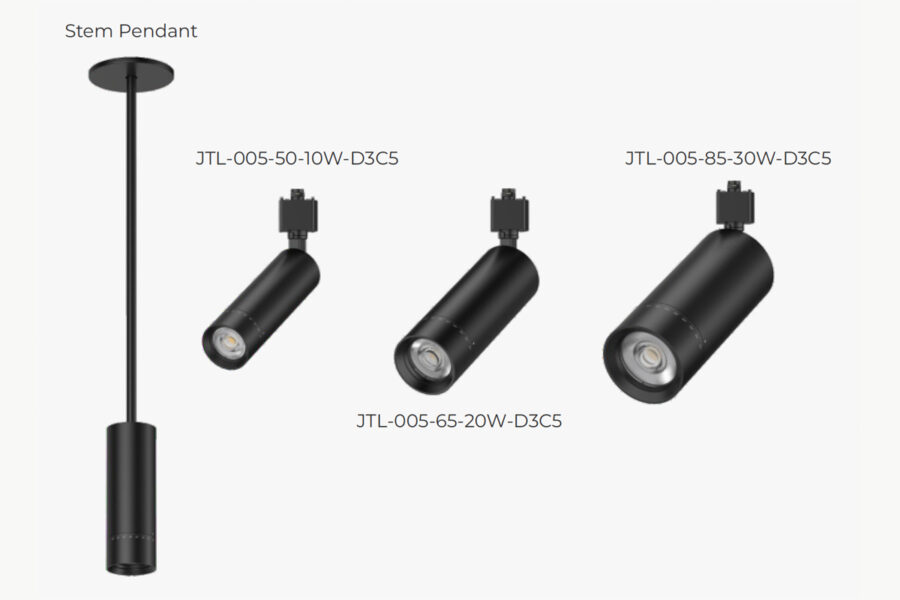

• Multiple installation ways: track mount / pendant / surface mount
• Juno track compatible

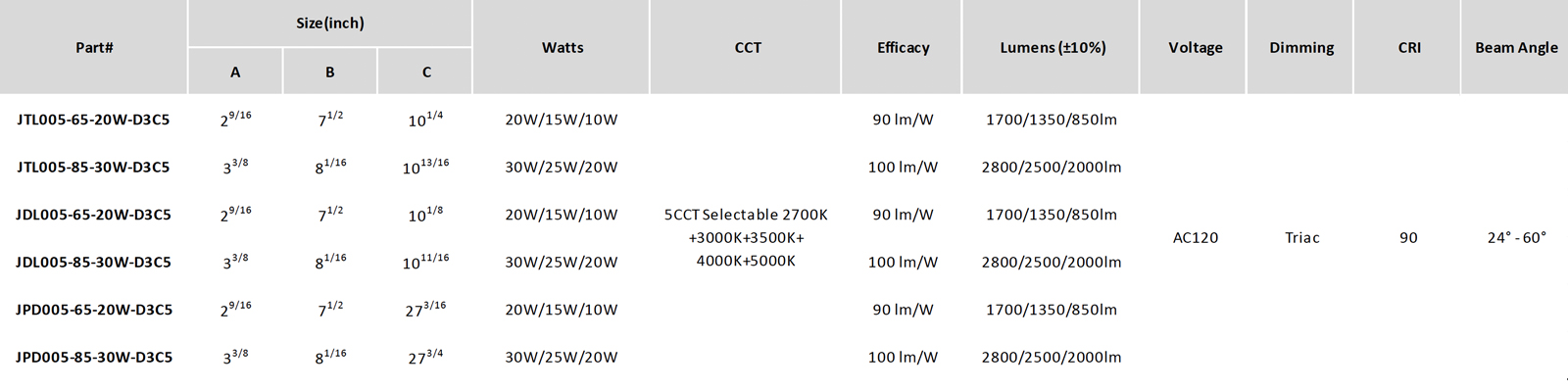

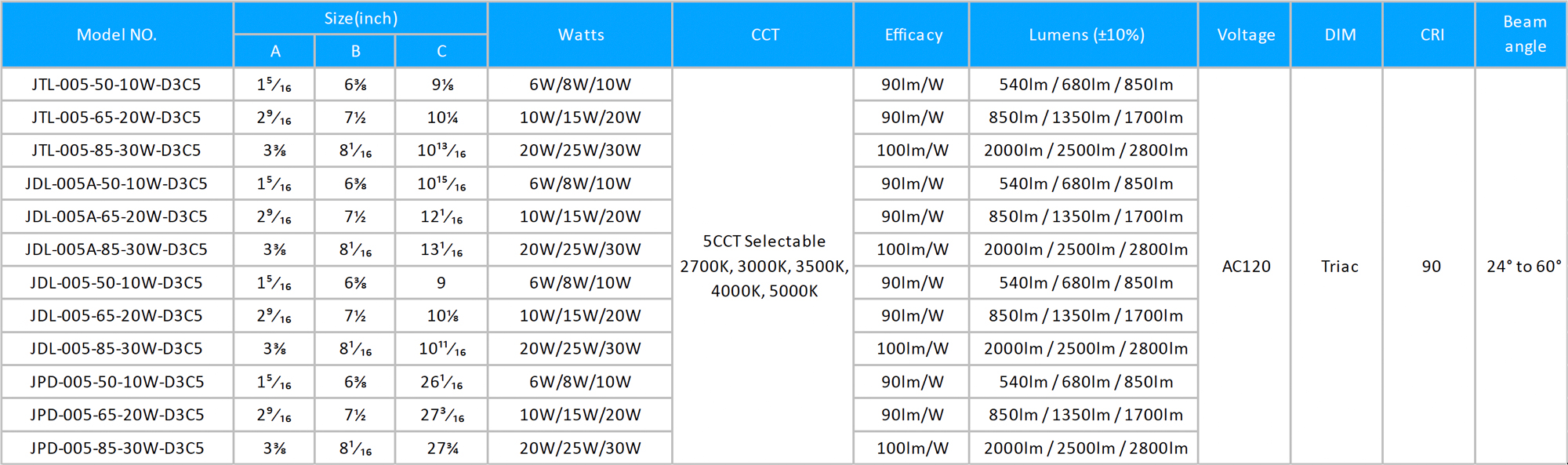

TECHNICAL SPECIFICATIONS

• Materials
  • Housing: ADC12 Aluminum Die Casting
  • Optic: PMMA
• Electrical
  • Rated voltage: 120V
  • Frequency: 60Hz
  • Power factor: >0.9
  • Constant voltage: –
• Environmental
  • Lifetime: >50,000Hrs
  • Operating temp: -4°F to 104°F (-20°C to 40°C)
  • Storage temp: -4°F to 149°F(-20°C to 65°C)
  • Location rating: Dry location
• Compatible
  • Dimming compatible controls: Lutron
  • Track Type compatible: HALO / Juno

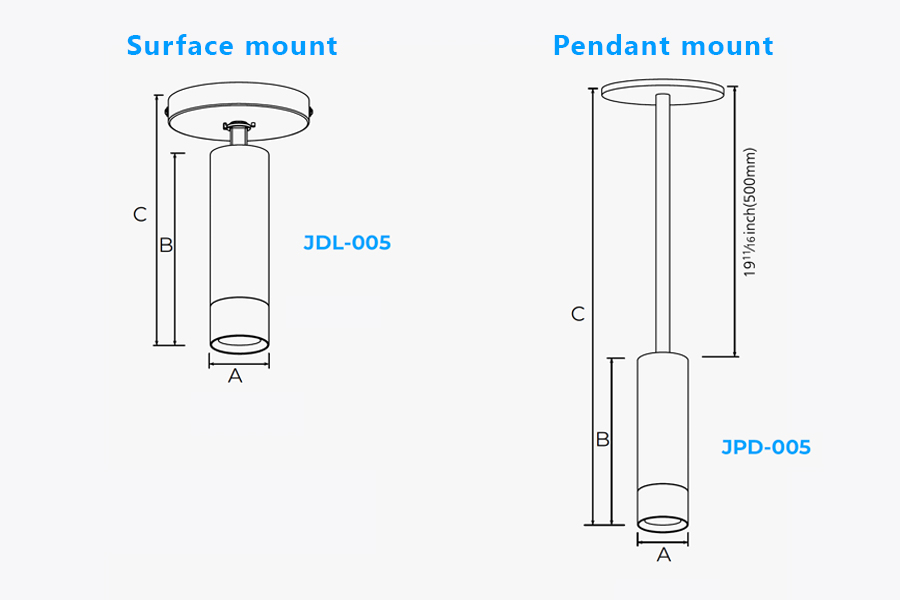

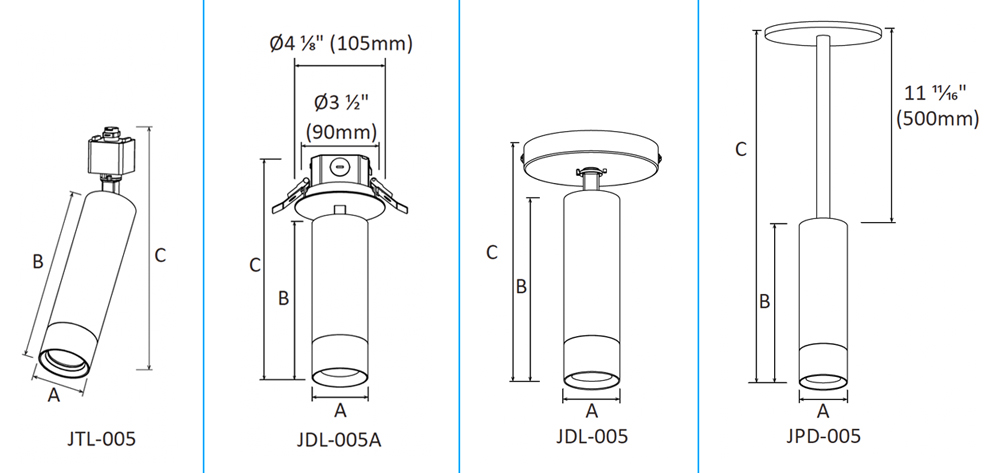

DIMENSIONS & MOUNTING
