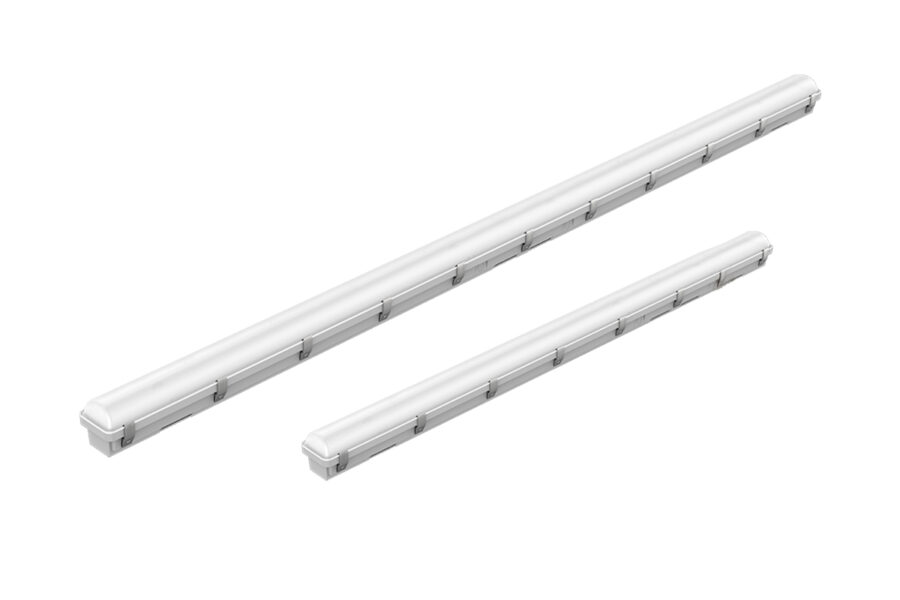

JVT-CPS SERIES
NSF RATED VAPOR TIGHT LUMINAIRE
WITH CCT AND POWER SELECTABLE FEATURES BUILT-IN
WITH CCT AND POWER SELECTABLE FEATURES BUILT-IN
PRODUCT FEATURES
Construction and Materials
- Rugged and durable construction with plastic housing
- Housing is permanent pearl gray color
Optical System
- UV-stabilized, high-impact, frosted polycarbonate lens for uniform light output and high impact resistance
Electrical System
- Size and Power Selectable:
4FT (50W / 40W / 30W)
8FT (80W / 70W / 60W) - CCT Selectable: 3000K / 4000K / 5000K
- Input Voltage: 120-277VAC or 120-347VAC
- Efficacy: up to 162 lm/W
- CRI: >80
- Ambient Temperature: -13°F to 113°F (-25°C to 45°C)
Dimming and Controls
- 0-10V Dimming (Standard)
- 12 VDC AUX & Dim-to-Off driver
Certifications and Compliance
- In process: UL Listed, DLC Listed
- Ingress Protection: IP65 Rated
- Wet Location
DOWNLOADS
MORE DOWNLOADS
OPTIONAL FEATURES
- Bi-level Microwave Sensor
- Networked lighting controls systems: Casambi / Silvair / BubblyNet
- Emergency Battery Backup: 8W / 15W / 20W
- Pendant mounting kit
CONTROLS OPTIONS
