PRODUCT FEATURES

Construction and Materials

• Die Cast Aluminum Alloy with Epoxy Powder Coat Finish in Dark Bronze and Glare Reduction
• Polycarbonate Lens
• Vandal Resistant

Optical System

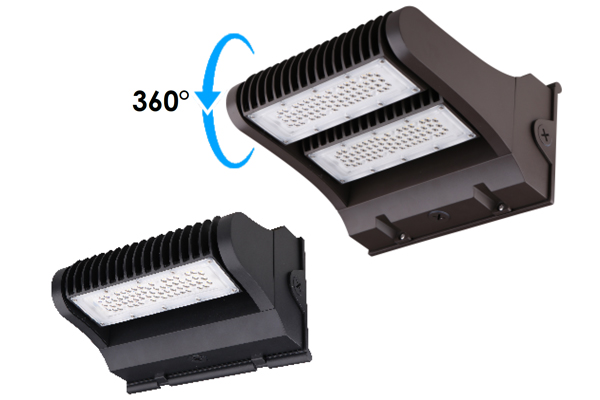

• Adjustable Optics – Set at 60° Optics

Electrical System

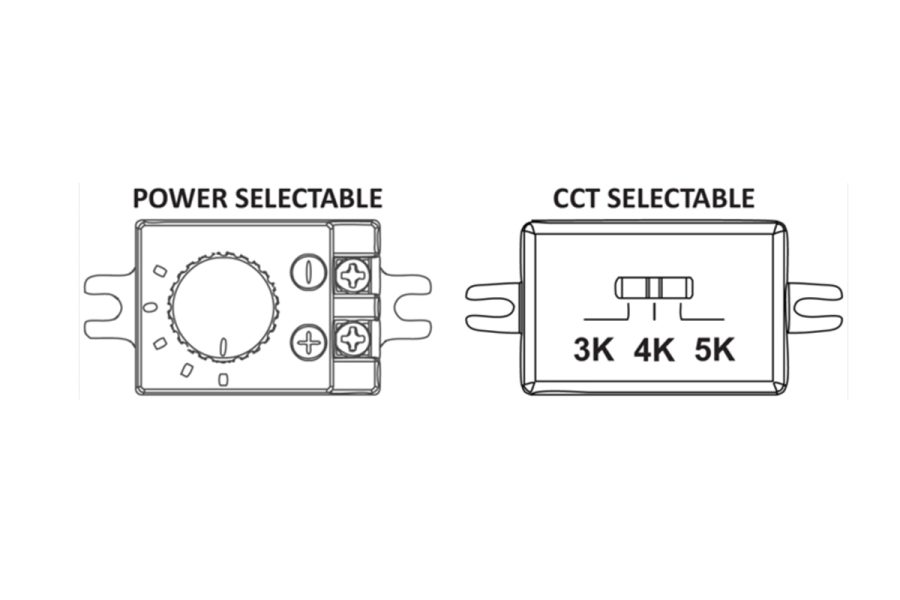

• Power Selectable: 40W (40W/30W/25W), 80W (80W/60W/40W)
• CCT Selectable: 3000K/4000K/5000K
• Input Voltage: 120-277VAC
• Efficacy: 135 lm/W on average
• Power Factor: >0.9
• CRI: >70
• Operating Temp: -40˚ C to 45°C (-40˚ F to 113°F)
• Total Harmonic Distortion: <20%
• Integral Surge Protection: L-N:2.5KV,L/N-GND:2.5KV

Dimming and Controls

• 0-10V Continuous Dimming Standard

Certifications and Compliance

• UL Listed for Wet Locations
• Ingress Protection: IP65 for Wet Locations
• RoHS compliant
• Meets FCC Part 15, Subpart B, Class A limits for conducted and radiated Emissions

Lifetime Based on TM21

• L70 ≥ 187,000 / L80 ≥ 162,000 / L90 ≥ 100,000 Hrs

DOWNLOADS

MORE DOWNLOADS

OPTIONAL FEATURES

• Photocell
• Bi-Level Occupancy/Motion Sensor
• PIR Control
• Auxiliary Output 12V
• 20KV Surge Protection
• Network Lighting Control Systems: Synapse, Casambi, or TruBlu
