PRODUCT FEATURES

Construction and Materials

• Die Cast aluminum cooling design (Dark Bronze Standard)

Optical System

• Very Wide Beam Angle: Type V (100.4° x 91.6°)

Electrical System

• Power Selectable:
  [30W]/24W/18W/12W
  [70W]/56W/42W/28W
  [120W]/96W/72W/48W
• Input Voltage: 120-277VAC / 277-480VAC
• Efficacy: 140 lm/W on average
• Power Factor: >0.9
• CRI: ≥70
• Operating Temp: -22°F to 113°F (-30°C to 45°C)
• Total Harmonic Distortion: <15%
• Integral Surge Protection: 6kV Surge Protection Standard

Dimming and Controls

• 1-10V Continuous Dimming Standard

Certifications and Compliance

• UL Listed for Wet locations
• RoHS Compliant
• Meets FCC Part 15, Subpart B, Class A limits for conducted and radiated Emissions
• Complies with Dark Sky Requirements

Lifetime Based on TM21

• L70 ≥ 187,000 Hrs / L80 ≥ 162,000 Hrs / L90 ≥ 100,000 Hrs

OPTIONAL FEATURES

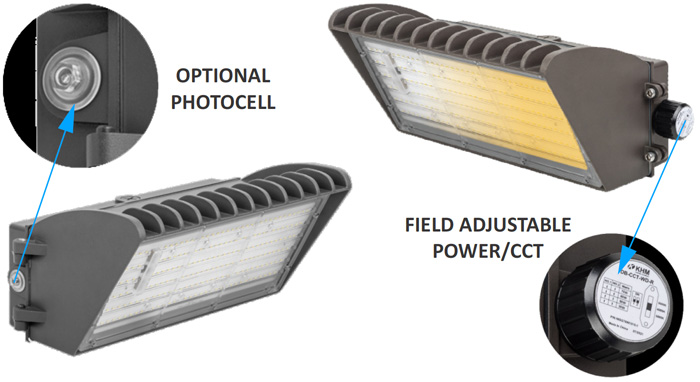

• Bi-level Microwave Occupancy/Motion Sensor
• 8W/15W/20W Emergency Battery Pack Options
• White, Black and Silver Housing Color Options (Special Order)
