LECV-30D
Emergency Battery Pack

Product Features

  • UL Listed for US and Canada
  • Listed for factory or field installation-UL924 & CSA C22.2 No.141
  • Constant power output: 30W/40W/60W
  • Multi-voltage input: 100-347VAC, 50/60Hz
  • Battery protections: overcharge protection, overdischarge protection, short circuit protection
  • Self-testing monthly
  • Wireless remote control for emergency testing
  • Easy installation, directly connect to AC input of High Bay
  • Meets CEC Title 20 standards
  • Warranty: 5 years

Product Application

The LECV-30D Series Emergency Battery Pack is designed for use with High Bay fixtures equipped with 0/1-10V Dimmable LED Drivers. It allows High Bay fixtures to be used for both normal and emergency operation.

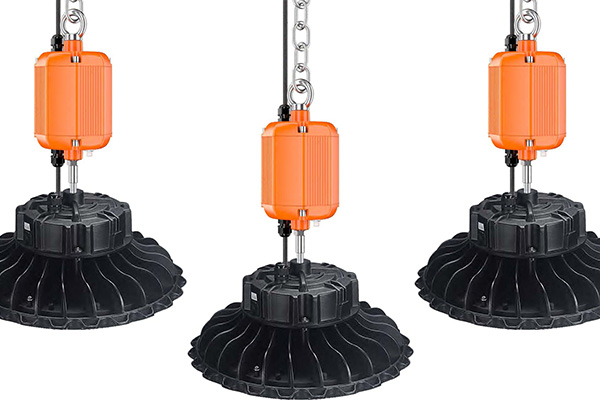

LECV-UFO30D-product-3

Certifications

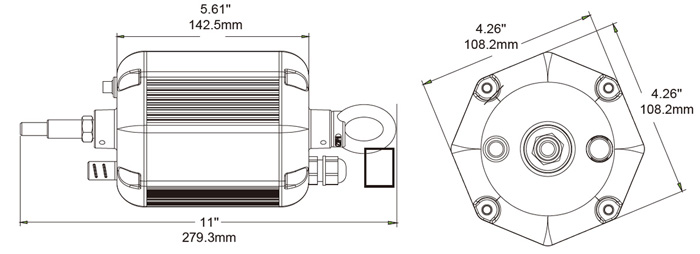

Dimensions

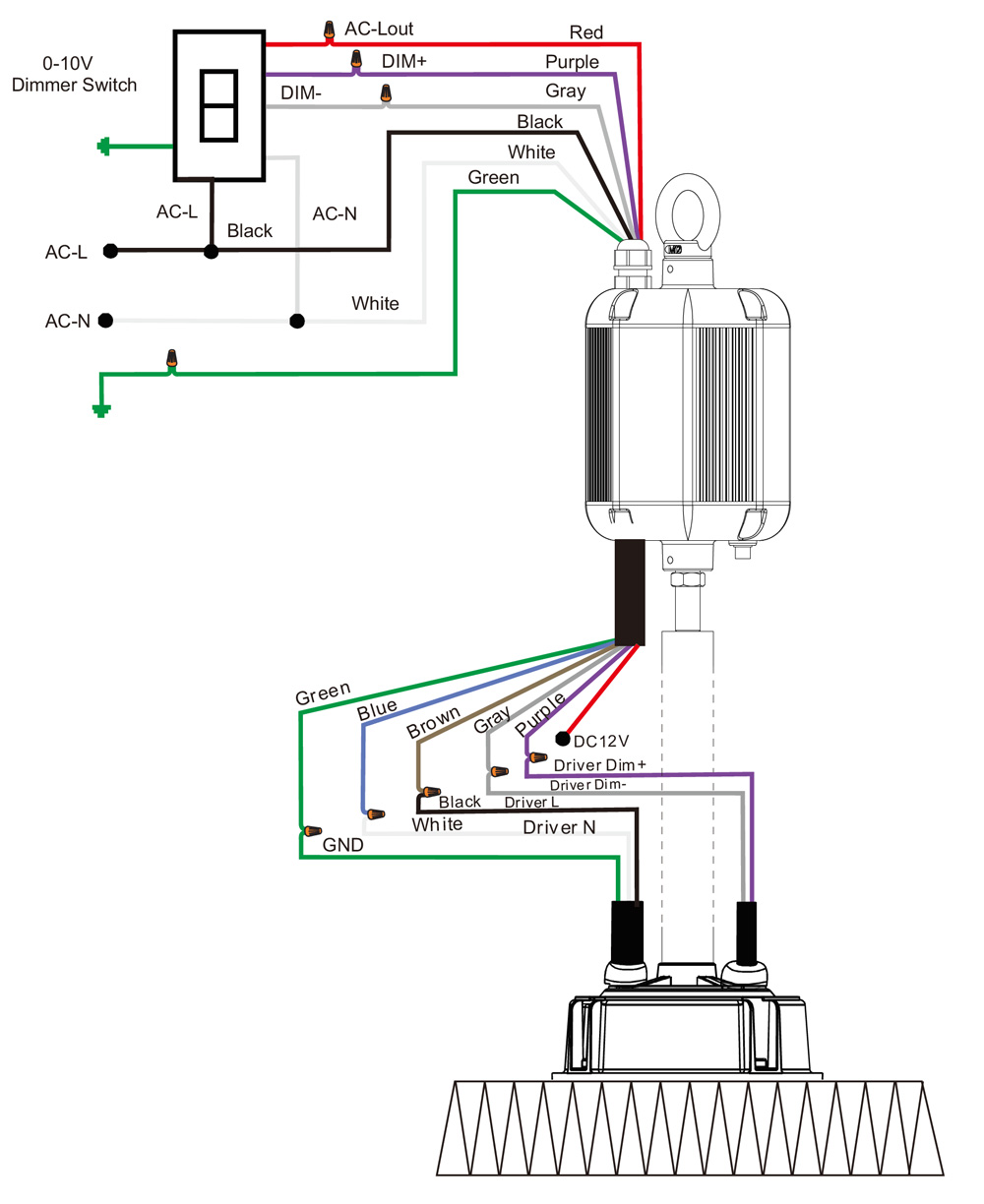

NOTE: EMERGENCY LED DRIVERS ONLY WORK WITH 0/1-10V DIMMABLE LED HIGHBAY

FIND MORE WIRING DIAGRAMS IN LECV-UFO30D SPEC SHEET

LECV-UFO 30D Emergency LED Driver Spec Sheet
