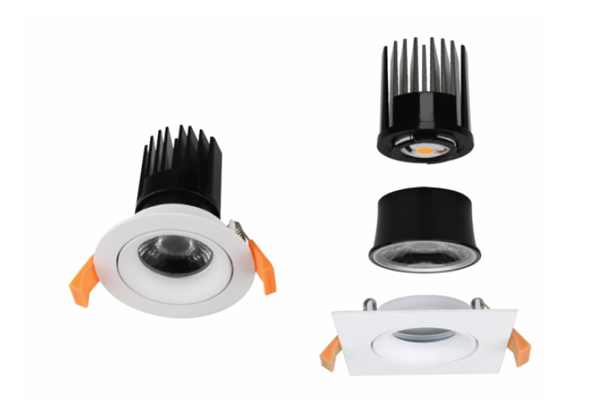

JADL3 SERIES
3” Architectural Downlight
Product Features
Housing Materials
- Aluminum housing
Optical System
- Light Distribution: 24° / 36° / 60°
Electrical System
- Power: 5W / 8W / 10W / 13W / 16W / 19W
- Input Voltage: 120-277VAC
- Efficacy: up to 100 lm/W
- Power Factor: >0.9
- CRI: 80 Standard / 90 Optional
- Operating Temp: -22°F to 113°F (-25°C to 45°C)
- Total Harmonic Distortion: <20%
- Integral Surge Protection: 4kV Surge Protection Standard
Dimming and Controls
- 0-10V Continuous Dimming Standard
- Triac / 120VAC (Optional)
Certifications and Features
- UL Listed
Warranty
- 5 Years Limited Warranty
Lifetime Based on TM21: L70 @ ≥ 129,000 Hrs / L80 @ ≥ 98,000 Hrs /
L90 @ ≥ 50,000 Hrs
