PRODUCT FEATURES

Illumination

• Ultra bright, energy efficient, long life Red or Green LEDs
• New York City compliant 8” EXIT letters

Electrical

• Dual 120/277 voltage
• Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing
• 3.6V long life, maintenance-free, rechargeable NiCd battery
• Internal solid-state transfer switch automatically connects the internal battery to LED board and LED adjustable optics for minimum 90-minute emergency illumination
• Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours

Mounting

• Aluminum mounting canopy included for top or end mount
• Universal pattern on back plate for wall mount
• Top and side K/O provided for conduit feed applications

Housing

• Durable, powder-coated 20-gauge steel construction in white or black finish
• Unique design allows double face conversion in the field
• Field removable steel knockout chevron directional indicators

Warranty & Listings

• Five year warranty on all electronics and housing
• Batteries prorated for five years
• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes

DOWNLOADS

MORE DOWNLOADS

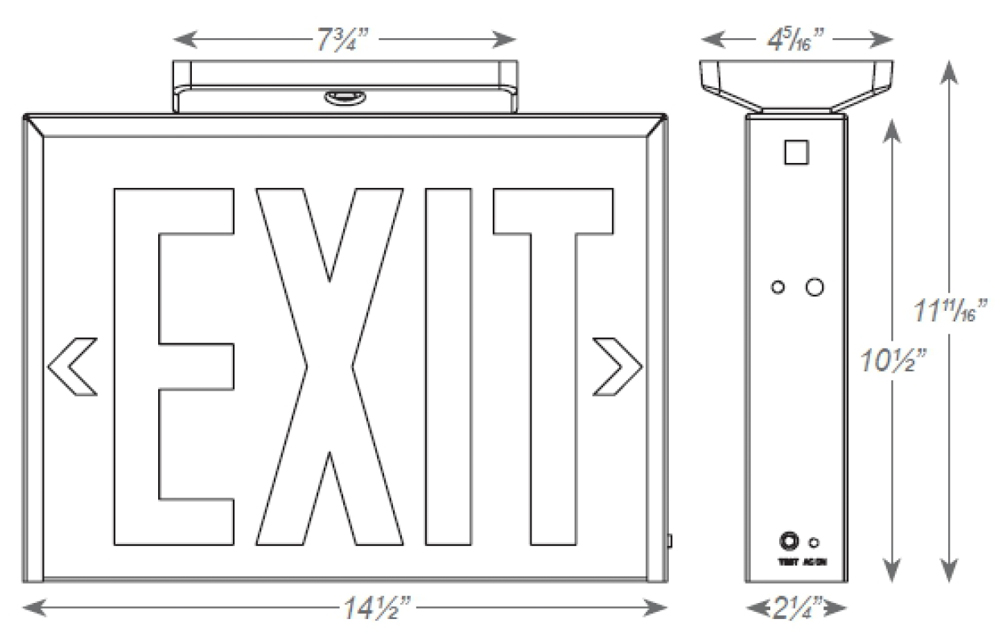

PRODUCT DIMENSIONS
