Product Features

Construction and Materials

• Constructed of one-piece ribbed unitized housing and corners that interlock, preventing damage to luminaire
• All sides and corners are turned in and hemmed removing sharp edges for safe handling and installation

Optical System

• Designed to reduce glare and improve light distribution through precision formed

Electrical System

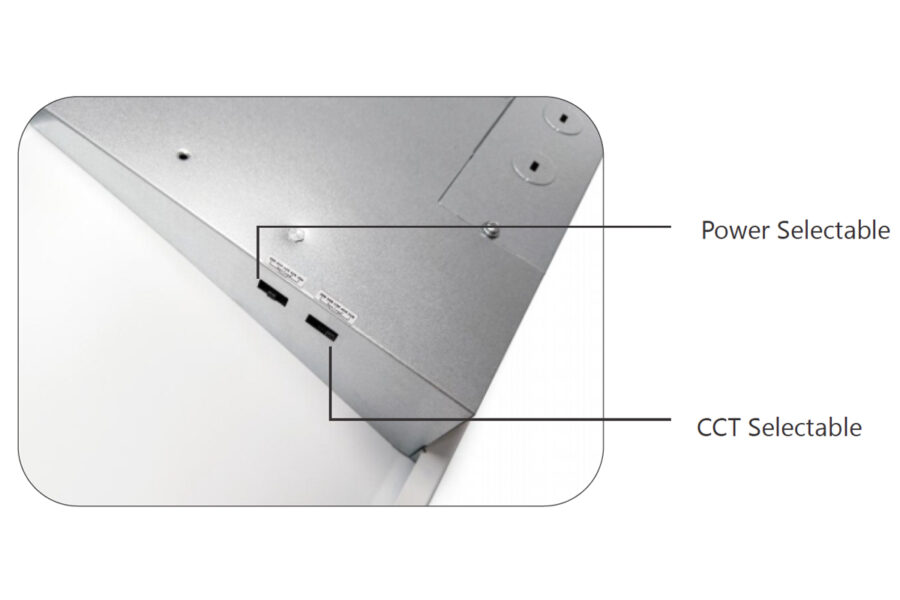

• Power Selectable: 40W (40W/30W/25W/20W/15W) and 50W (50W/40W/35W/30W/25W)
• CCT Selectable: 3500K, 4000K, 5000K, 5700K, 6500K
• Input Voltage: CC 120-277VAC Internal driver
• Efficacy: up to 125 lm/W
• Power Factor: >0.9
• CRI: >80 Standard
• Operating Temp: -4°F to 113°F (-20°C to 45°C)

Dimming & Controls

• 0-10V Dimming (Standard)

Certifications and Compliance

• ETL Listed (Pending)
• IP40 for damp locations
• RoHS Compliant
• Meets FCC Part 15, Subpart B, Class A limits for conducted and radiated Emissions

Lifetime Based on TM21: 50,000 Hrs

DOWNLOADS

MORE DOWNLOADS

OPTIONAL FEATURES

• Bi-Level PIR Sensor
• 8W or 15W Emergency Battery Backup

CONTROLS OPTIONS
