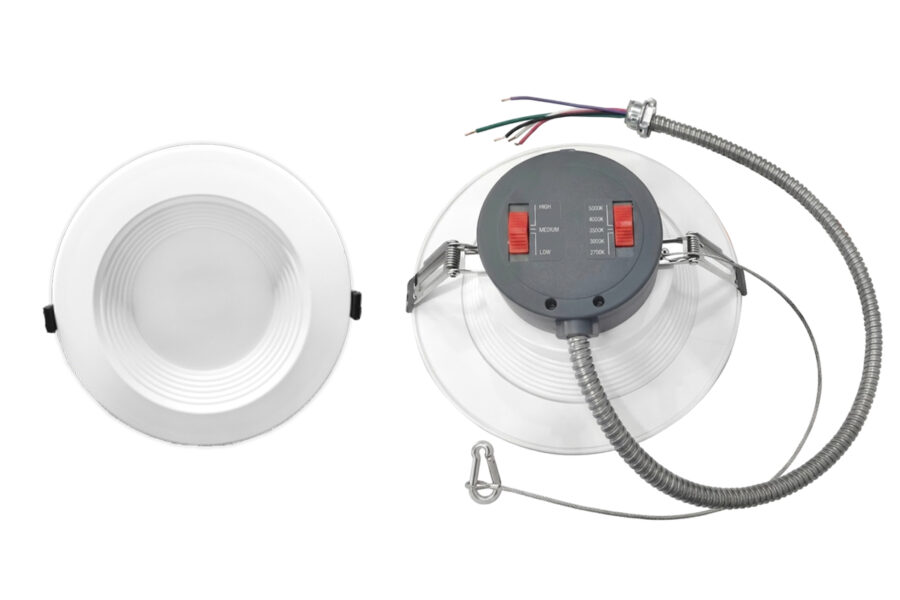

JRDL-ES-CPS SERIES
NSF Rated Economy Recessed Downlight
Product Features
Housing Materials
- Aluminum housing, integrated trim with snap clips
- Trim Options Available: 4”, 6″, 8″, 10”
- Provides comfortable diffused light with no dark spots
- Pre-wired with poke-in connectors for easy installation
- Safety chain for secure installation onto existing ceilings
Optics
- High transmission PC lens, 100° beam angle
Electrical System
- Input Voltage: CC 120-277VAC Internal driver
- Wattage Selectable:
4″ (12W, 9W, 6W)
6″ (22W, 17W, 12W)
8″ (30W, 24W, 17W)
10″ (38W, 30W, 22W) - CCT Selectable: 2700K, 3000K, 3500K, 4000K, 5000K
- Working Temperature: -4°F to 113°F (-20°C to 45°C)
- Power Factor: ≥0.9
- CRI: >90 CRI
- LED: Life Minimum 50,000 Hrs in compliance with IES LM-80 testing measurements
Dimming and Controls
- 0-10V Dimming Standard
Mounting
- Recessed Mount
Certifications and Features
- Energy Star & FCC Listed
- Wet Location
- IC Rated
- NSF Rated
- Pending: cETL & DLC Premium
