STANDARD FEATURES

Construction and Materials

• Aluminum Frame in powder coated matte finish and steel die-formed back enclosure and PMMA lenses over LEDs /PS diffuser, SDCM<5, UGR<22

Optical System

• 113° Beam Angle

Electrical System

• Power Selectable: 30W/25W/20W (1’x4’, 2’x2’); 46W/40W/35W (2’x4’)
• CCT Selectable: 3500K / 4000K / 5000K
• Input Voltage: 120-277VAC
• Efficacy: 130 lm/W
• Power Factor: >0.9
• CRI: >80 Standard / >90 Optional
• Operating Temp: -20°C to 40°C (-4°F to 104°F)
• Total Harmonic Distortion: <15%
• Integral Surge Protection: 6KV

Certifications and Compliance

• UL Listed for Damp Locations
• IC Rated for Insulated Ceilings
• RoHS Compliant
• Meets FCC Part 15, Subpart B, Class A limits for conducted and radiated Emissions
• UGR Ratings (@3500K, 80CRI): 17.8 (1’x4′); 17.6 (2’x2′); 18.7 (4’x6′)

Mounting Options

• Recessed in T-bar Grid Ceiling Mount
• Surface Mount and Suspension Mount with cable kit accessories available

Lifetime Based on TM21: L70@183,000 / L80@143,000 / L90@121,000Hrs

DOWNLOADS

MORE DOWNLOADS

CONTROLS FEATURES

• Dimming Capability and Range: Continuous Dimming to 10% or below
• Integral Control Capability: LLLC, Energy Monitoring, and High End Trim

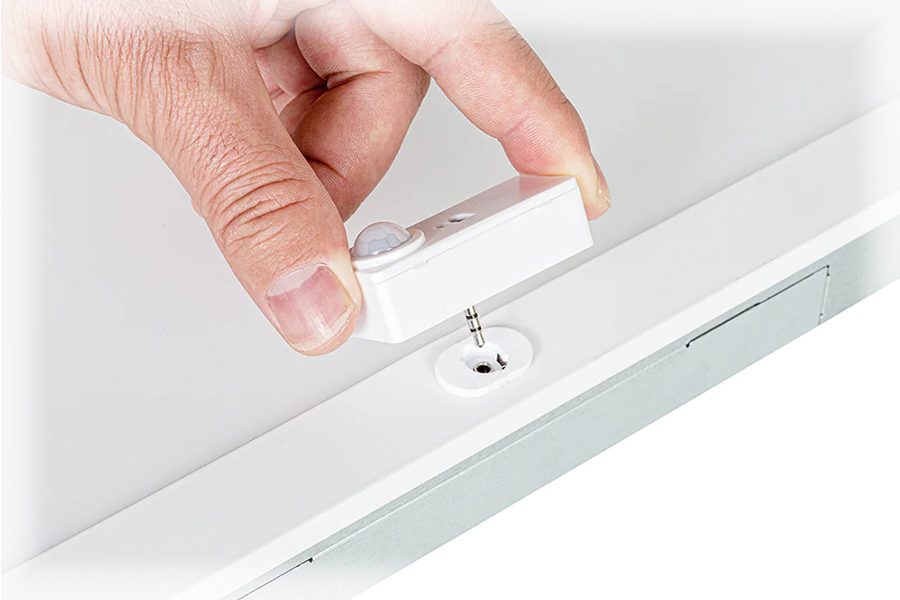

• Sensor Types: Sensor Receptacle, Daylight Sensing, Occupancy Sensing
• SSL V5 Wireless Communication Protocol: Bluetooth

CONTROLS OPTIONS
